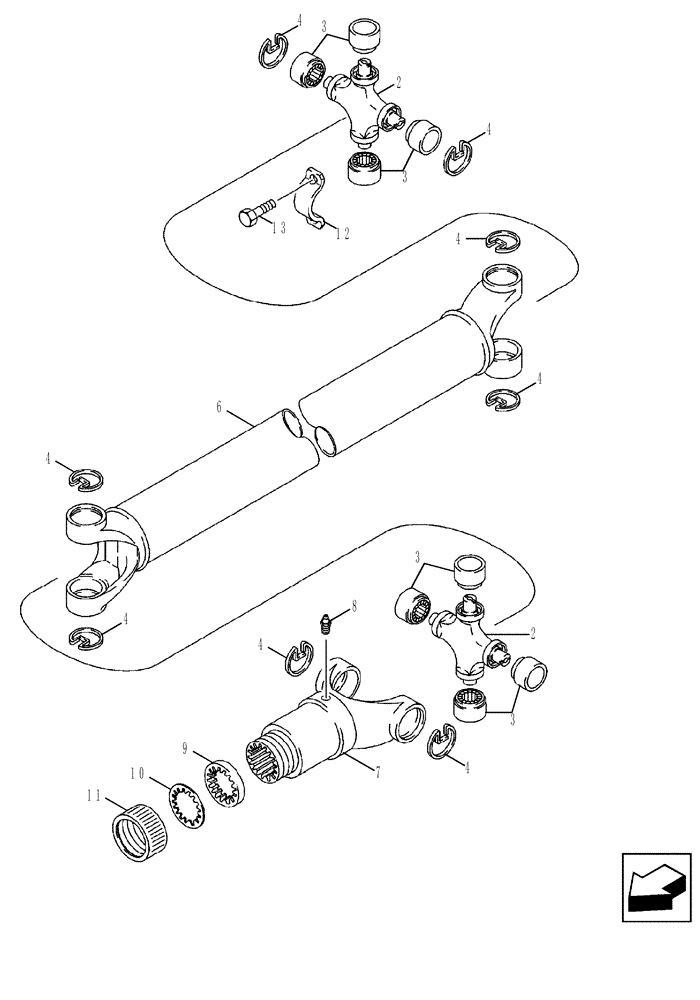

Запчасти Case 580SM (25.100.16) - DRIVE SHAFT, FRONT AXLE (25) - FRONT AXLE SYSTEM

87694656

DRIVE SHAFT

With or Without Powershift Transmission, Incl. Ref 2 - 11

1шт.

393231A1

SPIDER

Universal Joint, Incl. Ref 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT Universal

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING Journal

4шт.

4

NSS

NOT SOLD SEPARAT

RING Retaining

4шт.

7

87716823

YOKE

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

D149860

SERVICE KIT

Incl. Ref 9 - 11; If Used

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER Cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER Steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP

1шт.

12

87538515

KIT

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.
