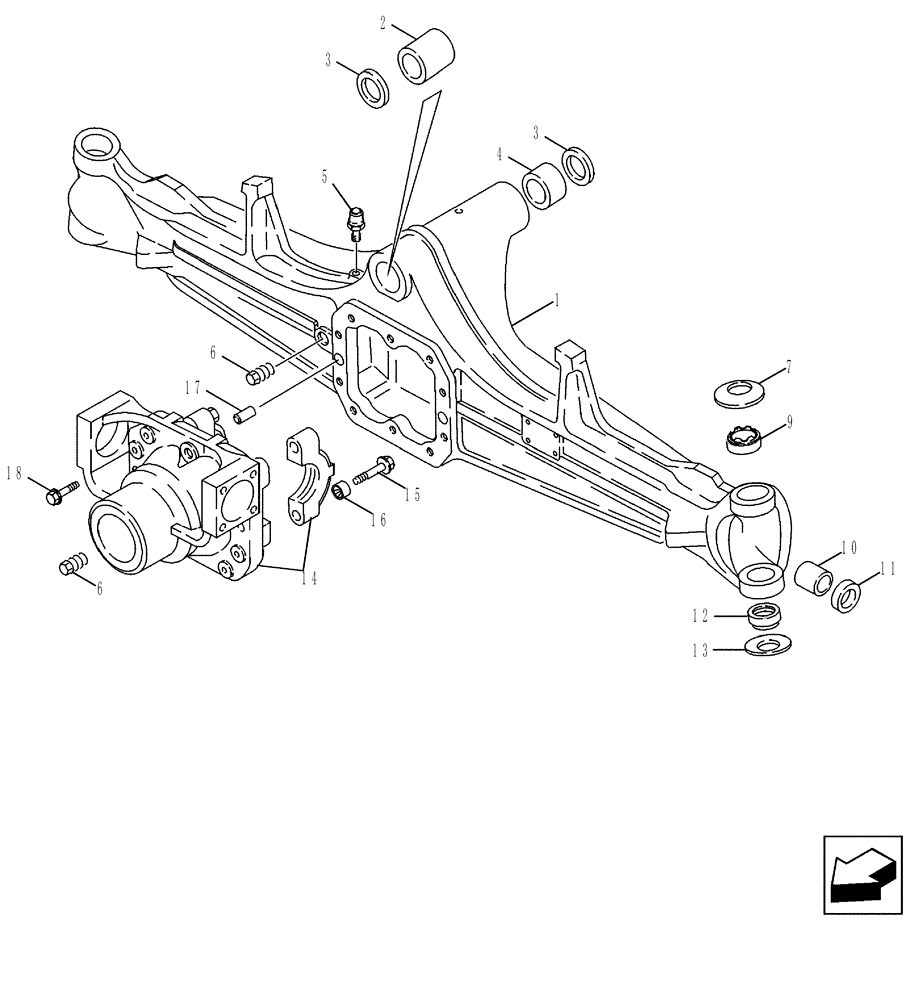

87395365
4WD AXLE ASSY
Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 18
1шт.
87400175
4WD AXLE ASSY
Front, 580SM+ Models With Or Without Powershift Transmission, Incl. Ref 1 - 18
1шт.
1
87710113
AXLE HOUSING
87400175 580SM+ Axle
1шт.
2
D149725
BUSHING,59.75 OD x 54mm L
1шт.
3
N14367
SEALING RING,50mm ID x 60.1mm OD x 4mm Thk
2шт.
4
D149726
BUSHING,6.20mm ID x 9.60mm OD x 6mm L
1шт.
5
1966149C2
BREATHER
1шт.
6
A156873
PLUG, DRAIN,M22 x 1.5
2шт.
7
122270A1
BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th
Belleville; 87395365 580SM Axle
2шт.
7
122262A1
BELLEVILLE WASHER
Belleville; 87400175 580SM+ Axle
2шт.
9
87400286
BUSHING
87395365 580SM Axle
2шт.
9
87417600
BUSHING,35mm ID x 52mm OD x 16.5mm L
87400175 580SM+ Axle
2шт.
10
1966186C1
BUSHING
87395365 580SM Axle
2шт.
10
1967535C1
BUSHING
87400175 580SM+ Axle
2шт.
11
87710155
SEALING RING
SEALRING 87395365 580SM Axle
2шт.
11
87710130
SEAL
87400175 580SM+ Axle
2шт.
12
100520A1
SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W
Bushing, 87395365 580SM Axle
2шт.
12
N14373
SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W
87400175 580SM+ Axle
2шт.
13
122268A1
BELLEVILLE WASHER
Belleville; 87395365 580SM Axle
2шт.
13
122261A1
BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th
87400175 580SM+ Axle
2шт.
87710131
SUPPORT
Differential Carrier; Incl. Ref 14 - 16
1шт.
14
NSS
NOT SOLD SEPARAT
CARRIER
1шт.
15
S301065
BOLT,Hex Flg, M14 x 75, 12.9
4шт.
16
1966136C1
BUSHING,15mm ID x 18mm OD x 12mm L
4шт.
17
1966138C1
DOWEL
2шт.
18
5194169
BOLT,Hex Flg, M12 x 33, 12.9
10шт.
