(21.155.20) - DRIVE SHAFT, REAR AXLE

Запчасти Case 580SM (21.155.20) - DRIVE SHAFT, REAR AXLE (21) - TRANSMISSION

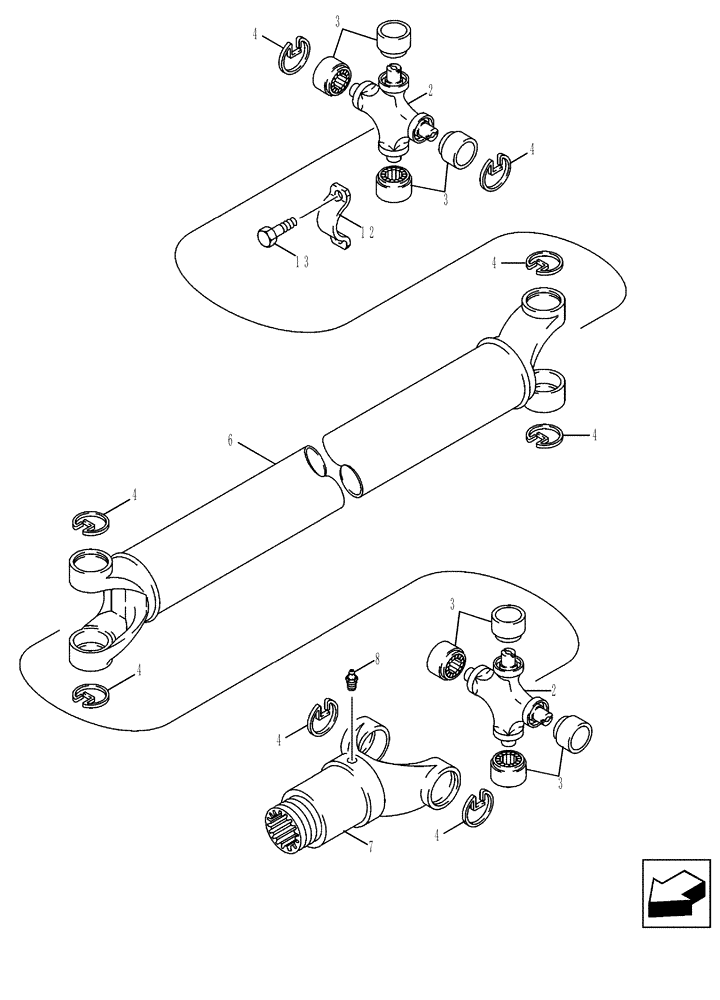

Схема запчастей Case 580SM - (21.155.20) - DRIVE SHAFT, REAR AXLE (21) - TRANSMISSION
3
4
4
3
4
8
4
3
6
13
2
3
4
4
12
4
2
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87613924

DRIVE SHAFT

580SM Models; Incl. 2, 6 and 7

1шт.

393231A1

SPIDER

Universal Joint, Incl. Ref 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT Universal

1шт.

3

D149860

SERVICE KIT

Incl. cap, steel washer and cork washer if used

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING Journal

4шт.

4

NSS

NOT SOLD SEPARAT

RING

4шт.

6

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

7

87716823

YOKE

1шт.

7

87716824

CAP

Retaining (Not Shown)

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

D137626

CLAMP,30.175mm D Clamping Pipe

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.
