Запчасти Case 580SM (21.109.02) - TRANSMISSION- COOLING SYSTEM (21) - TRANSMISSION

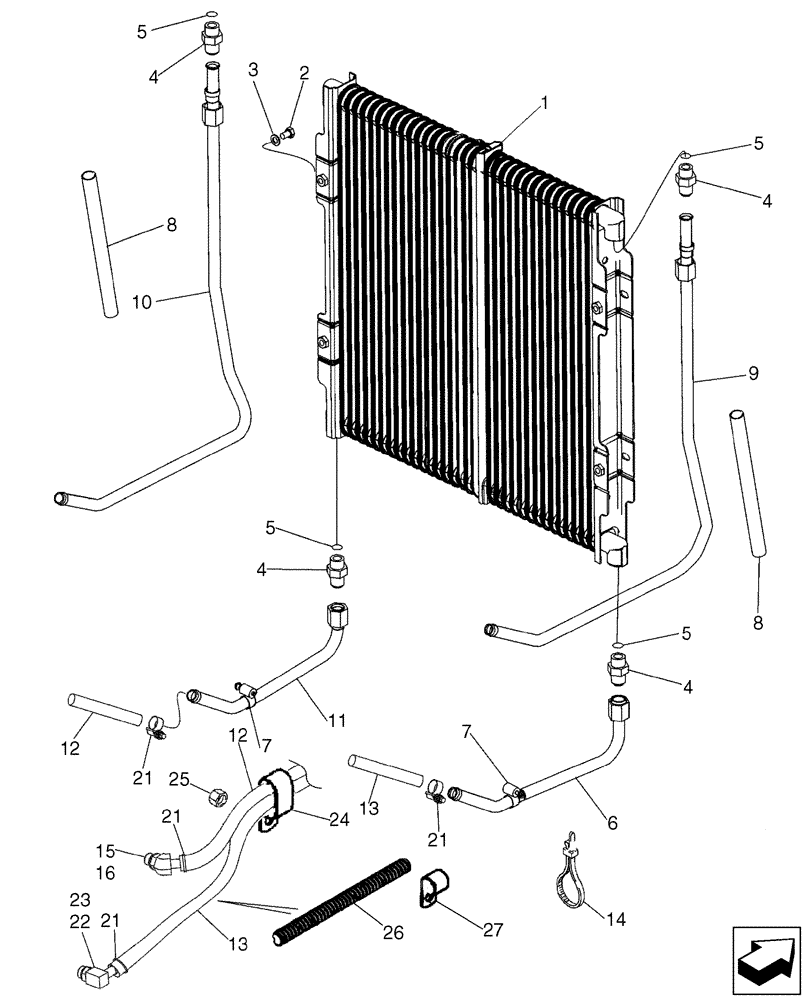

Схема запчастей Case 580SM - (21.109.02) - TRANSMISSION- COOLING SYSTEM (21) - TRANSMISSION
5
4
23
13
5
13
15
22
14
21
11
12
21
8
21
4
5
6
3
2
7
4
12
10
9
8
24
4
27
1
16
25
7
21
5
26

Артикул

Название

Примечание

Количество

1

87441876

OIL COOLER

Hydraulic

1шт.

2

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 5

4шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87435078

TUBE,15.875 mm OD x 315 mm L

Lower Right-Hand

1шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

8

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

Sleeve

2шт.

9

87435076

TUBE,15.875 mm OD x 584, 362 mm L

Right-Hand Upper Cooler

1шт.

10

87435080

TUBE,15.875 mm OD x 584, 362 mm L

Left-Hand Upper Cooler

1шт.

11

87435082

TUBE,15.875 mm OD x 315, 64 mm L

Left-Hand Lower

1шт.

12

87422597

HOSE,15.88mm ID x 975mm L, SAE 100R6

975 mm (38-13/32 in), Transmission to Cooler Inlet

1шт.

13

87422598

HOSE,15.88mm ID x 1225mm L, SAE 100R6

Cooler Outlet to Transmission

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

15

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

328186A1

HOSE CLAMP,400mm L

4шт.

22

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl Ref 23; Used on Models with 2WD or 4WD Transmissions

1шт.

22a

87721671

TEE,1/2"-14 x 7/8"-14 ORB x 5/8 Hose

Incl. Ref 23; Used on Models With 4WD Powershift Transmission; Not Illustrated

1шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double P

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

26

D132982

PADDLE,26.87mm ID x 400mm L

1шт.

27

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

Выбрано товаров: 24
