(21.104.03[02]) - TRANSMISSION, 4WD (580SM/SM+) - FILTER, OIL

Запчасти Case 580SM (21.104.03[02]) - TRANSMISSION, 4WD (580SM/SM+) - FILTER, OIL (21) - TRANSMISSION

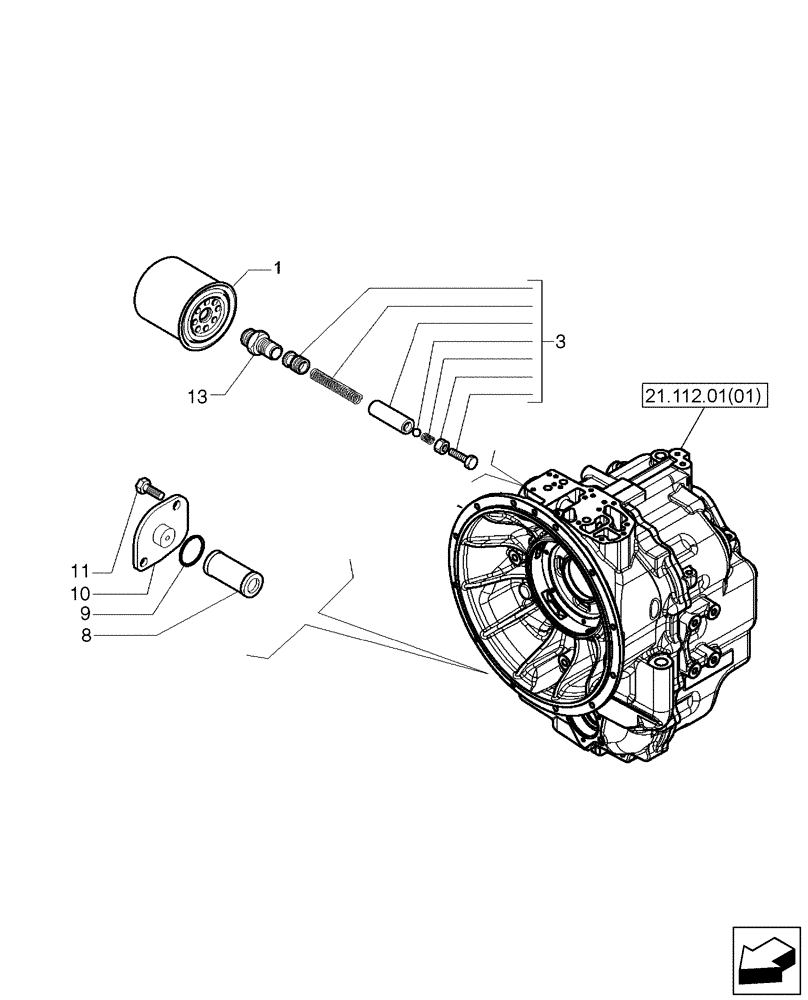

Схема запчастей Case 580SM - (21.104.03[02]) - TRANSMISSION, 4WD (580SM/SM+) - FILTER, OIL (21) - TRANSMISSION
10
13
21.112.01(01)
11
9
1
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395301

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 13

1шт.

87395301R

REMAN-TRANSMISSION

Remanufactured, 4WD

1шт.

87395301C

CORE-TRANSMISSION

Return Number, 4WD

1шт.

1

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Oil

1шт.

3

181274A1

REPAIR KIT

Valve

1шт.

8

278534A1

FILTER SCREEN

Oil

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

10

181219A1

COVER

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

13

181202A1

FITTING

1шт.
