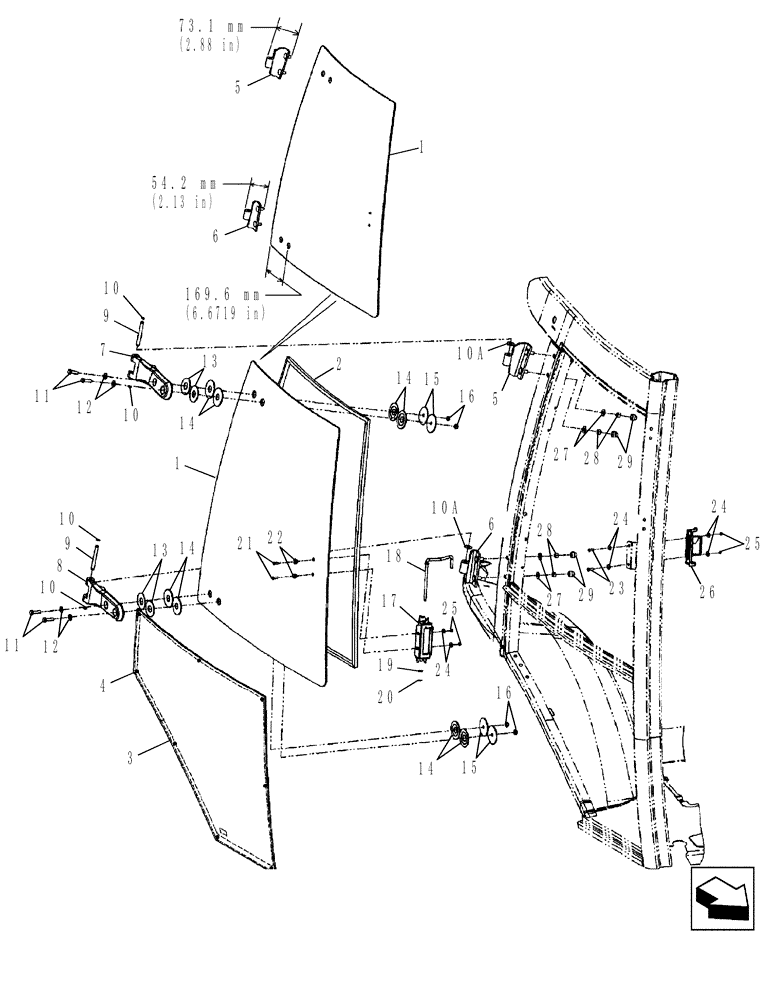

Запчасти Case 580SM (90.156.04) - CAB - WINDOW, RIGHT-HAND, FOR SINGLE DOOR CAB FRAMES (90) - PLATFORM, CAB, BODYWORK AND DECALS

87442204

WINDOW FRAME

Right-Hand; Incl. Ref 1 - 29; Not Available As An Assembly, Order Components

1шт.

87448198

WINDOW ASSY

SERVICE KIT, Right-Hand Window and Hinges; Incl. Ref 1, 5, 6, Plus Instructions

1шт.

1

87439724

GLASS,CAB

Upper

1шт.

2

394864A1

SEAL, GLASS,804.4mm L

1шт.

3

338428A1

GLASS

Lower

1шт.

4

391827A1

SPACER,11.1mm D

Cut Bumpers In Half For 8 Locations

4шт.

5

87439722

HINGE

Upper

1шт.

6

87439723

HINGE

Lower

1шт.

7

364134A2

HINGE,Pivot to 1st hole - 126.58mm; Window hole to hole - 65.14mm

Plastic; Upper

1шт.

8

364135A2

HINGE,Pivot to 1st hole - 123.36mm; Window hole to hole - 65.34mm

Plastic; Lower

1шт.

11

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

12

895-30107

WASHER,M8 x 20 x 2

4шт.

16

832-10508

NUT,M8 x 1.25, Cl 8

4шт.

17

87344860

HANDLE

Slam Latch

1шт.

21

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

22

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon

2шт.

23

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

2шт.

24

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

6шт.

25

F45165

SPECIAL NUT,#10-24

No. 10

4шт.

27

397064A1

SPECIAL WASHER

3/8 x 7/8 x 1/16 thk

4шт.

28

232-1446

NUT,3/8"-16, GC

4шт.

29

396841A1

CAP,3/8 Inch x 18.03mm L

4шт.
