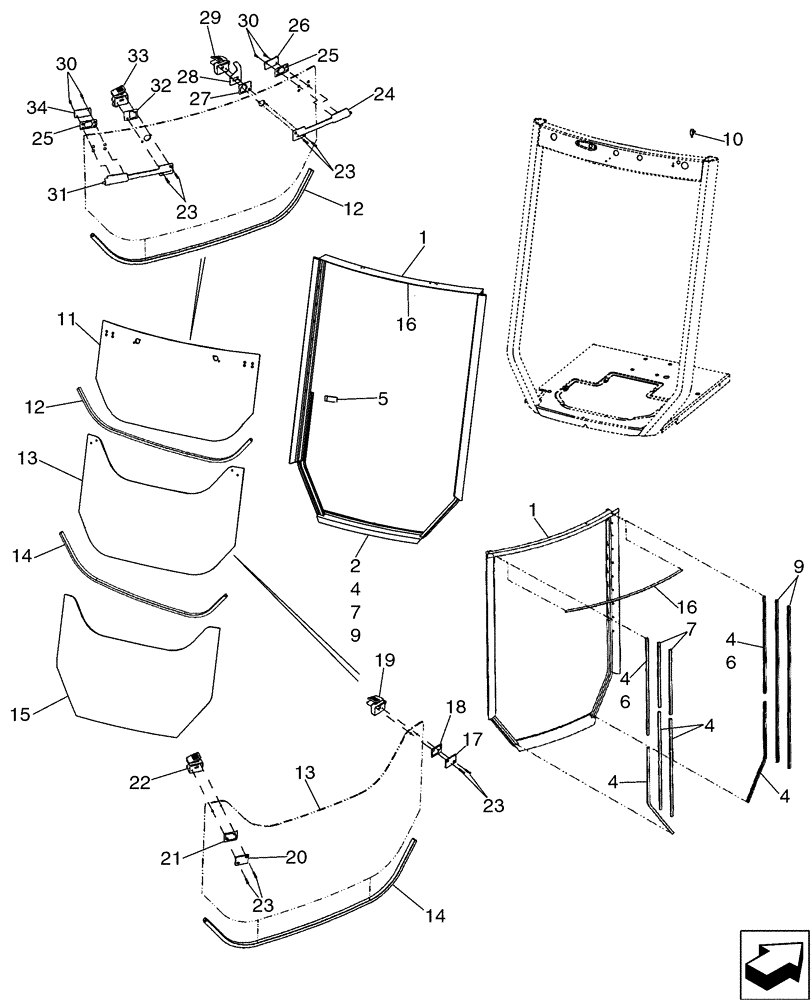

Запчасти Case 580SM (90.156.03) - CAB - WINDOW, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87435929

WINDOW FRAME

Included in 411850A1 Frame and Seal Kit

1шт.

2

410867A1

GASKET

Rubber Seal; Bulb Type

1шт.

4

404228A1

SEAL,760mm L

760 mm (29-15/16 in), Flocked Channel Seals; Cut From 402852A1; Included in 411851A1 Seal Kit and 411850A1 Frame and Seal Kit

6шт.

5

400200A1

RUBBER BLOCK,25mm L

Stop

2шт.

6

404226A1

SEAL

787 mm (31 in), Flocked Channel Seals; Cut From 402852A1

2шт.

7

404229A1

SEAL,510mm L

508 mm (20 in), Flocked Channel Seals; Cut From 402852A1; Included In 411851A1 Seal Kit and 411850A1 Frame and Seal Kit

2шт.

9

404227A1

SEAL,1270mm L

1270 mm (50 in), Flocked Channel Seals; Cut From 402852A1; Included in 411851A1 Seal Kit and 411850A1 Frame and Seal Kit

2шт.

10

A187714

PUSH BUTTON SWITCH

SWITCH - Rear Wiper Cutout

1шт.

11

352208A1

GLASS,CAB

Upper

1шт.

12

395348A1

SEALING STRIP

1210 mm (47-21/32 in), Lower Glass Edge; Cut From 404426A1

1шт.

13

352209A1

GLASS,CAB

Middle

1шт.

14

395348A1

SEALING STRIP

1210 mm (47-21/32 in), Lower Glass Edge; Cut From 404426A1

1шт.

15

352210A1

GLASS,CAB

Lower

1шт.

16

400494A1

SEAL,1095mm L

1095 mm (43-1/8 in), Hollow Seal; Cut From 404231A1; Included in 411851A1 Seal Kit and 411850A1 Frame and Seal Kit

1шт.

17

411917A1

BACK PLATE

1шт.

18

402847A1

BUSHING

1шт.

19

411909A1

LATCH

Includes 1 Each 402868A1 Cover, 402867A1 Lever, 402833A1 Plunger, 402831A1 Housing, 402830A1 Bushing, 402870A1 Spring, 402869A1 Rivet, 402865A1 Bumper

1шт.

20

411916A1

BACK PLATE

1шт.

21

402846A1

PLASTIC PLATE

1шт.

22

411908A1

LATCH

Includes 1 Each 402871A1 Cover, 402872A1 Lever, 402873A1 Plunger, 402832A1 Housing, 402830A1 Bushing, 402870A1 Spring, 402869A1 Rivet, 402865A1 Bumper

1шт.

23

87435453

HEX SOC SCREW,FLAT, M5 x 0.8 x 25mm

Flat Head Socket, M5 x 25

8шт.

23

409692A1

SCREW,Flat, M5 x 0.8 x 30mm

Longer Screw - If Needed

1шт.

24

411910A1

LATCH

Bolt Assy; Includes 1 Each 402860A1 Housing, 402840A1 Gasket, 402837A1 Bolt, 402861A1 Insert, 402838A1 Rod, 402856A1 Spring

1шт.

RH - Determine from Seat facing Radiator

1шт.

28

402836A1

BRACKET

Rear Wiper Cutout Switch

1шт.

30

87445051

HEX SOC SCREW,Flat Hd, Csk, M5 x 16mm, Gr 8.8, Prev Torque

Flat Head Socket, M5 x 16

4шт.

31

411911A1

LATCH

Bolt Assy; Includes 1 Each 402863A1 Housing, 402851A1 Gasket, 402856A1 Spring, 402841A1 Bolt, 402861A1 Insert, 402838A1 Rod

1шт.

LH - Determine from Seat facing Radiator

1шт.
