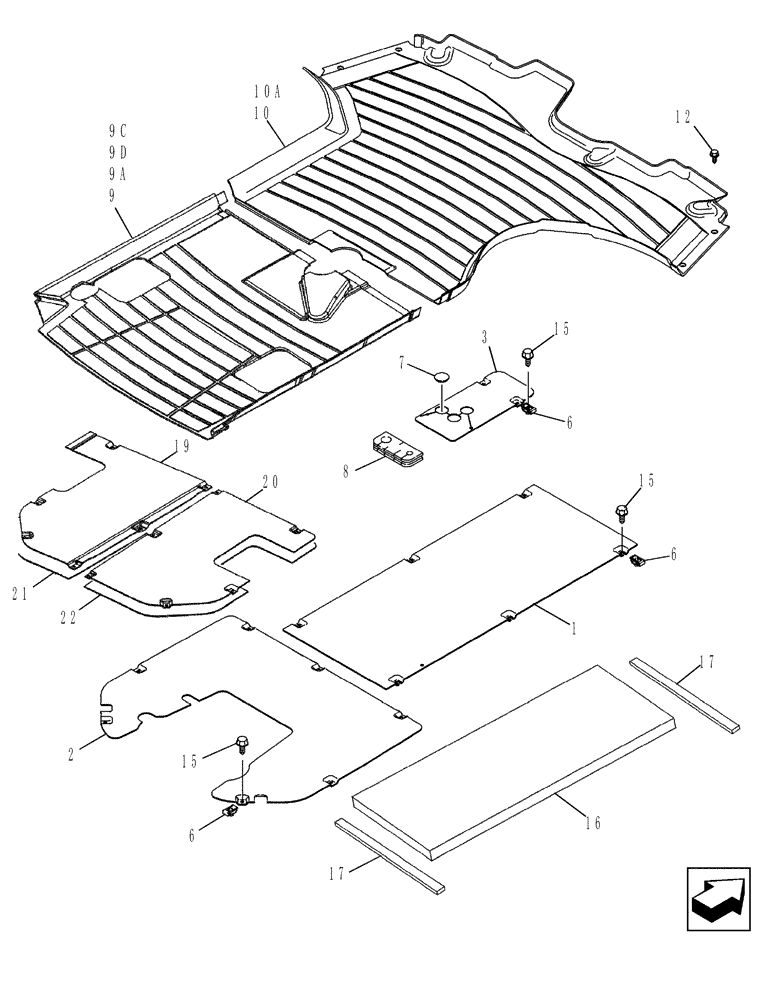

Запчасти Case 580SM (90.150.08) - PLATES, FLOOR - FLOORMATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

355984A2

FLOOR

Front

1шт.

2

86983190

COVER

Rear; Without Pilot Controls

1шт.

3

87436076

COVER

Loader Control Lever

1шт.

6

833-40406

NUT,M6, U

16-17шт.

7

353-422

PLUG,Dome, 1.250" hole, Nylon

Models without Clam Bucket

1шт.

8

393623A1

GROMMET

Floor

1шт.

9

86983325

FLOOR MAT

Rear, 580SM Canopy Models, Without Pilot Controls

1шт.

9a

86983269

FLOOR MAT

Rear, 580SM Canopy Models, With Pilot Controls; Not Illustrated

1шт.

9b

86993773

FLOOR MAT

Rear, 580SM+ Canopy Models, Without Pilot Controls; Not Illustrated

1шт.

9c

86993774

FLOOR MAT

Rear, 580SM+ Canopy Models, With Pilot Controls; Not Illustrated

1шт.

10

390551A2

FLOOR MAT

Front, 580SM Cab or Canopy Models

1шт.

10a

391625A2

FLOOR MAT

Front, 580SM+ Cab or Canopy Models; Not Illustrated

1шт.

12

87310085

SELF-TAP SCREW,HWH, M10 x 25.4mm

Hex Washer Head, No. 10 x 1, Self-Tapping, Stainless Steel

4шт.

15

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25, Includes Washer, Stainless Steel

16-17шт.

16

411074A1

FOAM INSULATION

Cab Models

1шт.

17

181981A1

SEALING STRIP

Foam; Adhesive Back; Cab Models

2шт.

19

87434049

FLOOR

Rear, With Pilot Controls

1шт.

20

87434050

FLOOR

Rear, With Pilot Controls

1шт.

21

87442376

FOAM INSULATION

Heat Barrier, Left-Hand, Canopy Models With Pilot Controls

1шт.

22

87442377

FOAM INSULATION

Heat Barrier, Right-Hand, Canopy Models With Pilot Controls

1шт.
