(90.118.51) - MIRROR, REAR VIEW - MOUNTING, CAB MODELS

Запчасти Case 580SM (90.118.51) - MIRROR, REAR VIEW - MOUNTING, CAB MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

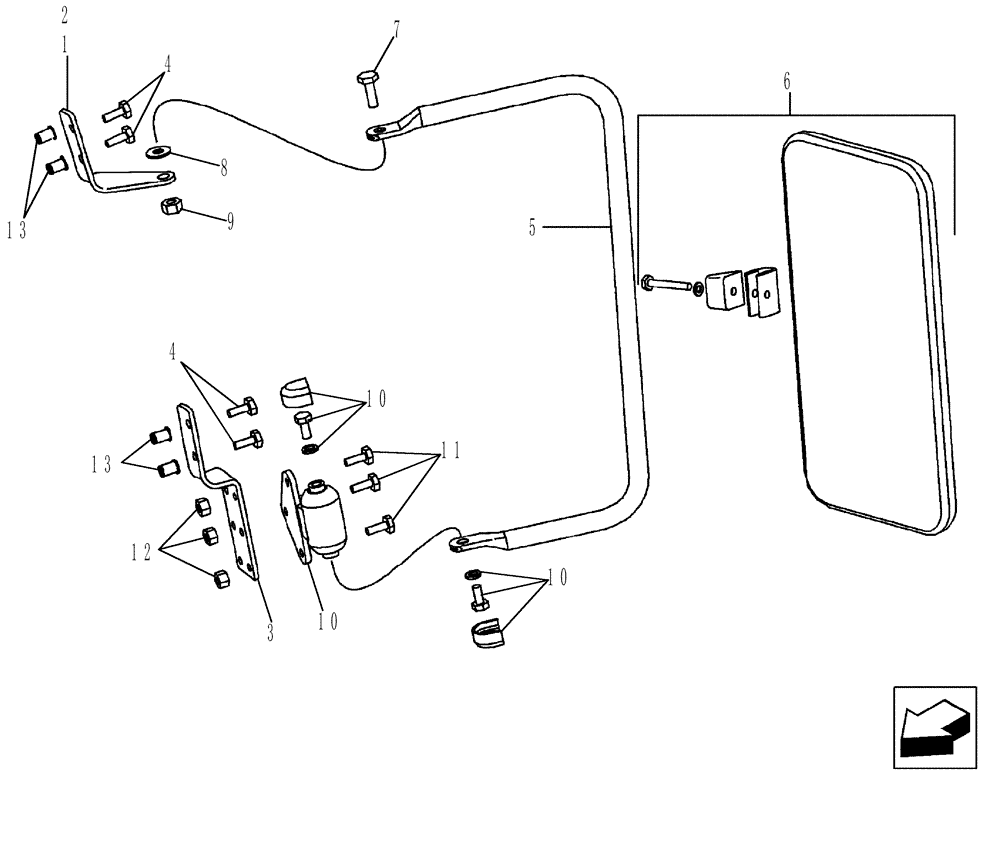

Схема запчастей Case 580SM - (90.118.51) - MIRROR, REAR VIEW - MOUNTING, CAB MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
10
11
13
5
6
4
2
3
12
10
7
1
8
13
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

6

R54682

MIRROR

Exterior

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

A167037

WASHER

2шт.

9

231-4115

NUT,5/16"-18, GB

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

12

231-1444

NUT,1/4"-20, GB

6шт.

14

NSS

NOT SOLD SEPARAT

Tool, Insert Nut; Not Illustrated

1шт.
