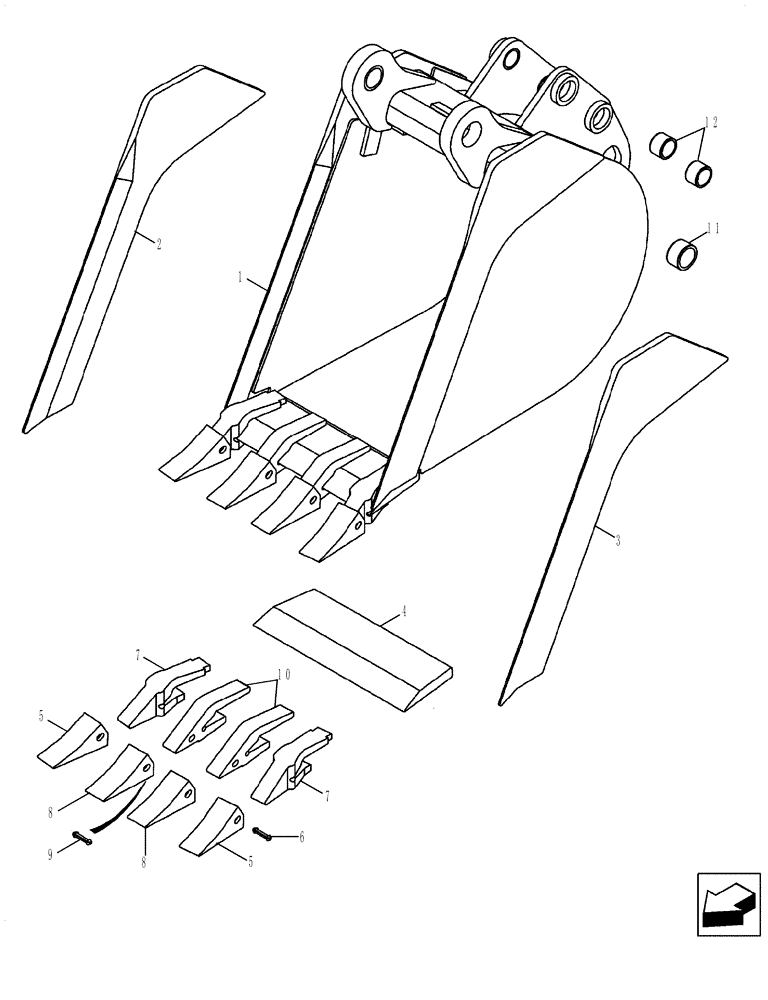

Запчасти Case 580SM (84.100.01[03]) - BUCKET, UNIVERSAL BACKHOE (457 MM (18 INCH) WIDE) (84) - BOOMS, DIPPERS & BUCKETS

1

87724905

BUCKET

457 mm (18 in), With 4 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12; Replaces 376384A1

1шт.

2

NSS

NOT SOLD SEPARAT

EDGE Right-Hand

1шт.

3

NSS

NOT SOLD SEPARAT

EDGE Left-Hand

1шт.

4

NSS

NOT SOLD SEPARAT

EDGE

1шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
