(84.100.01[02]) - BUCKET, UNIVERSAL BACKHOE (406 MM (16 INCH) WIDE)

Запчасти Case 580SM (84.100.01[02]) - BUCKET, UNIVERSAL BACKHOE (406 MM (16 INCH) WIDE) (84) - BOOMS, DIPPERS & BUCKETS

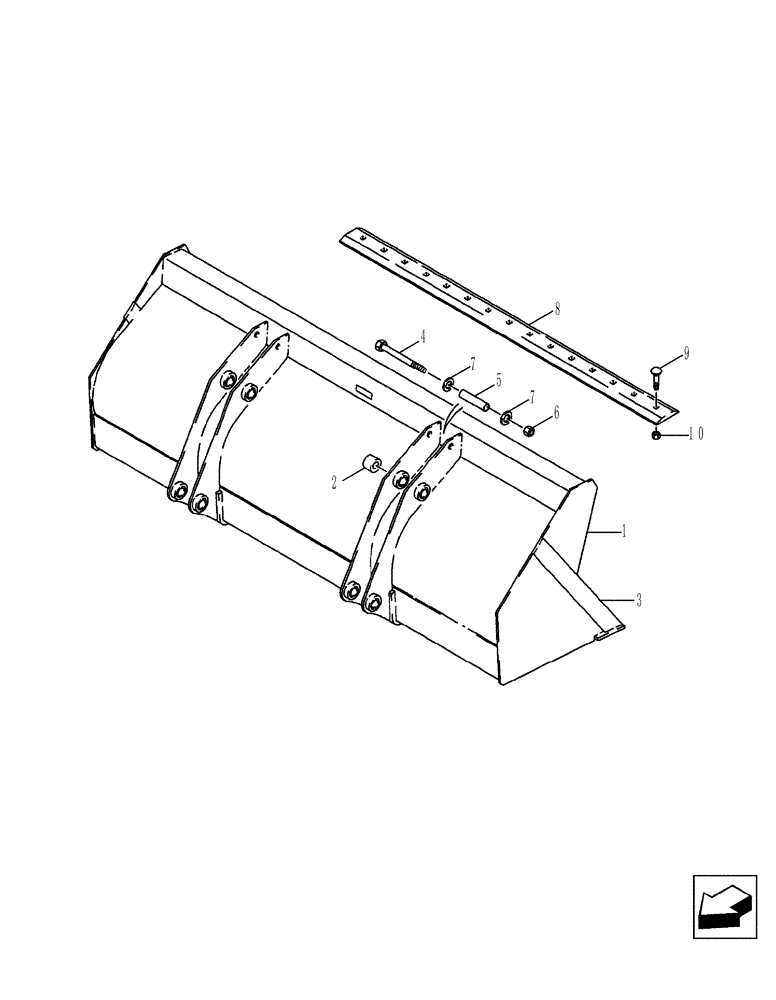

Схема запчастей Case 580SM - (84.100.01[02]) - BUCKET, UNIVERSAL BACKHOE (406 MM (16 INCH) WIDE) (84) - BOOMS, DIPPERS & BUCKETS
9
8
2
7
5
7
4
1
10
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

388843A1

BUCKET

406 mm (16 in), With 3 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12

1шт.

2

D146421

EDGE, CUTTING

Right-Hand

1шт.

3

D146420

EDGE, CUTTING

Left-Hand

1шт.

4

D147249

EDGE

1шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

6шт.
