Запчасти Case 580SM (55.512.17) - ELECTRICAL - BACKHOE AUXILIARY HYDRAULIC, UNI-DIRECTIONAL (55) - ELECTRICAL SYSTEMS

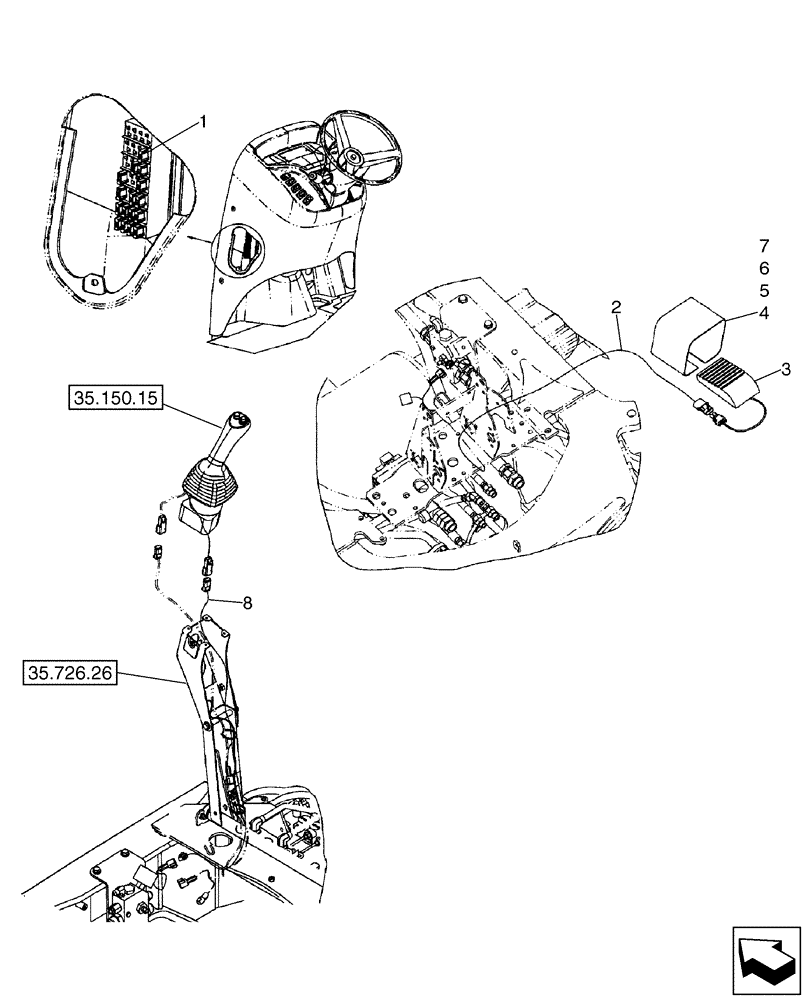

Схема запчастей Case 580SM - (55.512.17) - ELECTRICAL - BACKHOE AUXILIARY HYDRAULIC, UNI-DIRECTIONAL (55) - ELECTRICAL SYSTEMS
6
2
35.150.15
35.726.26
3
4
8
5
1
7

Артикул

Название

Примечание

Количество

1

121413A1

FUSE,15A, Mini, Blue

1шт.

2

87425631

WIRE HARNESS

Auxiliary Hydraulic Harness, Uni-Directional; Models Without Pilot Controls

1шт.

3

137219A1

SWITCH

Foot; Without Pilot Controls

1шт.

4

300030A1

COVER

Without Pilot Controls

1шт.

5

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

2шт.

6

892-11005

LOCK WASHER,M5

2шт.

7

824-1405

NUT,M5, Cl 5

2шт.

8

87425635

WIRE HARNESS

Auxiliary Hydraulic; Uni-Directional; Models With Pilot Controls

1шт.

Выбрано товаров: 8
