Запчасти Case 580SM (55.408.01) - BEACON, ROTATING (CAB OR CANOPY MODELS) (55) - ELECTRICAL SYSTEMS

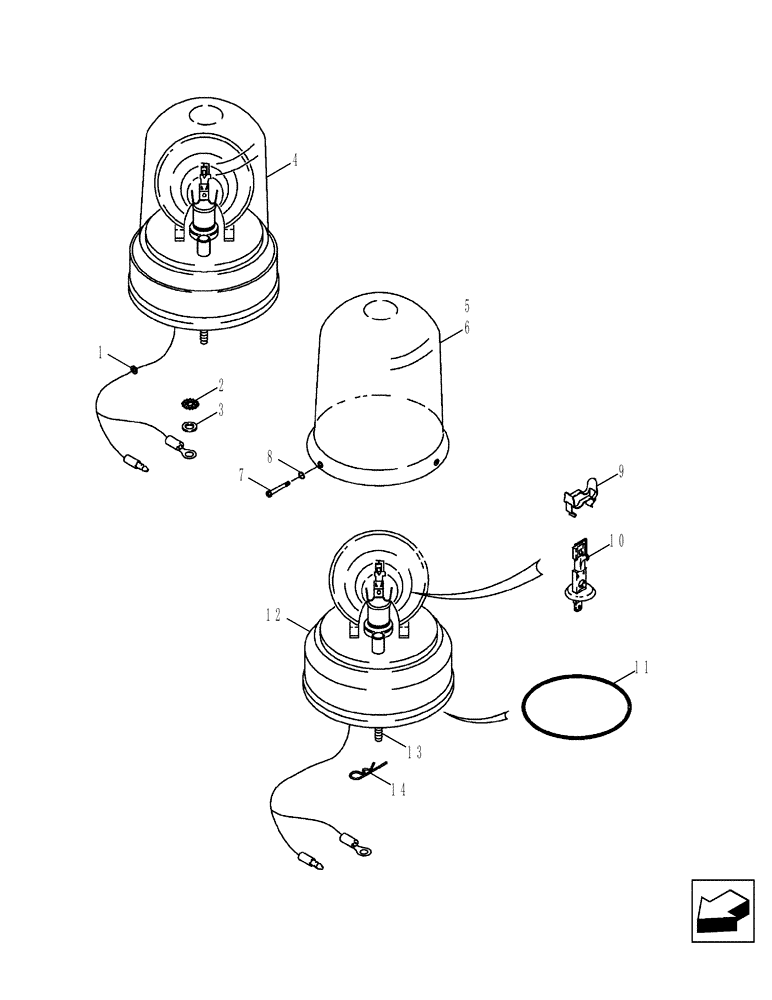

Схема запчастей Case 580SM - (55.408.01) - BEACON, ROTATING (CAB OR CANOPY MODELS) (55) - ELECTRICAL SYSTEMS
12
1
9
-
11
10
3
-
5
7
8
2
14
13
4
6

Артикул

Название

Примечание

Количество

1

A23870

GROMMET

1шт.

2

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

Ground

1шт.

3

495-21031

WASHER,1/4"

1шт.

4

108366A1

BEACON

Rotating; Amber, 12V; Incl. Ref 5, 7 - 14

1шт.

5

A187542

LENS

Amber; If Used

1шт.

6

127158A1

LENS

Blue; Optional; Not Included In Kit, Purchase Separately; If Used

1шт.

7

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

3шт.

8

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

9

101531A1

CLIP

1шт.

10

86616248

BULB,H1, 12V, 55W

1шт.

11

A187575

O-RING

Drive Motor

1шт.

12

NSS

NOT SOLD SEPARAT

BASE With Drive Motor

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

14

136-54

PIN

1/4 x 11/16

3шт.

15

386851A1

BEACON SWITCH

Rotating; Not Illustrated

1шт.

16

121412A1

FUSE,10A, Mini, Red

Not Illustrated

1шт.

Выбрано товаров: 16
