Запчасти Case 580SM (55.100.06) - MOTOR ELECTRIC INSTALLATION (55) - ELECTRICAL SYSTEMS

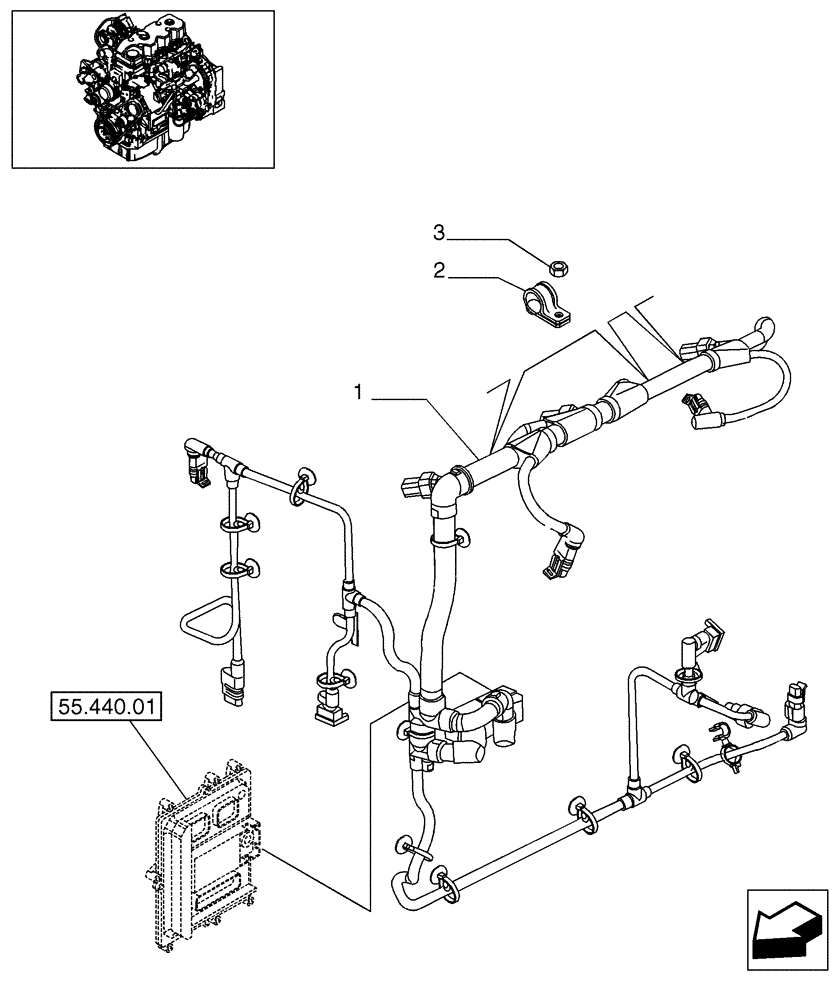

Схема запчастей Case 580SM - (55.100.06) - MOTOR ELECTRIC INSTALLATION (55) - ELECTRICAL SYSTEMS
3
55.440.01
2
1

Артикул

Название

Примечание

Количество

1

2855886

WIRE HARNESS

1шт.

2

4899815

CLAMP,20mm, Insul, 7mm Bolt

2шт.

2

2852500

CLAMP

1шт.

3

2852484

FLANGE NUT,Hex, M6 x 1

M6

3шт.

82033028

CABLE TIE,170mm L

Cable TIE W/ Fir tree, L = 170mm [made for 6.3/7.0mm hole]

1шт.

87567355

CLAMP,202mm L x 4.6mm W x 1.2mm Thk

Cable Tie W/ Fir tree, L = 202mm [ made for 6.5mm hole size]

1шт.

87567356

CLAMP,200mm L x 4.6mm W x 1.2mm Thk

Cable TIE W/ Fir tree, L = 200mm [made for 10.0mm hole size]

1шт.

Выбрано товаров: 7
