(50.206.05) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES

Запчасти Case 580SM (50.206.05) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES (50) - CAB CLIMATE CONTROL

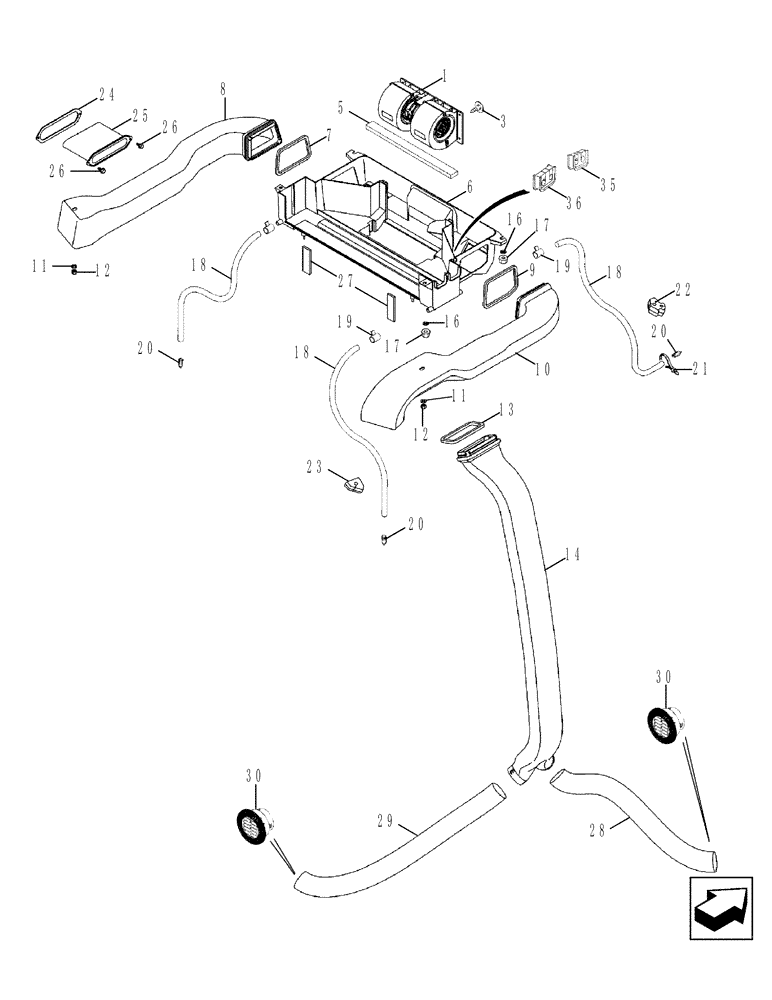

Схема запчастей Case 580SM - (50.206.05) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES (50) - CAB CLIMATE CONTROL
24
20
13
16
19
17
19
16
17
6
12
29
8
22
14
12
7
23
10
26
1
27
26
-
3
18
21
35
18
5
36
28
25
-
11
20
30
18
20
30
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

377220A2

BLOWER ASSY.

Component Parts Not Serviced Separately; Kysor/Westran Brand; If Used;

1шт.

1

377241A2

BLOWER ASSY.

Component Parts Not Serviced Separately; Aurora Brand; If Used;

1шт.

3

182697A1

FASTENER

1шт.

7

368805A1

FOAM INSULATION

Left-Hand Duct

1шт.

9

369249A1

RUBBER SEAL,183mm L

Right-Hand Duct

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

368807A1

RUBBER SEAL,8mm Thk

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

20

365789A1

DRAIN VALVE

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

2шт.

22

383794A2

PLUG

2шт.

23

383795A2

PLUG

580SM Models

2шт.

23

395470A1

PLUG

580SM+ Models

2шт.

24

381113A2

INSULATOR,3mm Thk

1шт.

25

381111A2

SLEEVE

1шт.

26

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

2шт.

27

377230A3

SEAL,94mm L

16 mm thk; Fresh Air Duct To Ventilation Housing

2шт.

30

398986A1

VENT

2шт.

35

403225A1

SEAL,62mm L

Heater Tubes At Housing

1шт.

36

403193A1

SEAL,62mm L

Air Conditioning Tubes At Housing

1шт.
