Запчасти Case 580SM (50.200.17) - CAB - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER (50) - CAB CLIMATE CONTROL

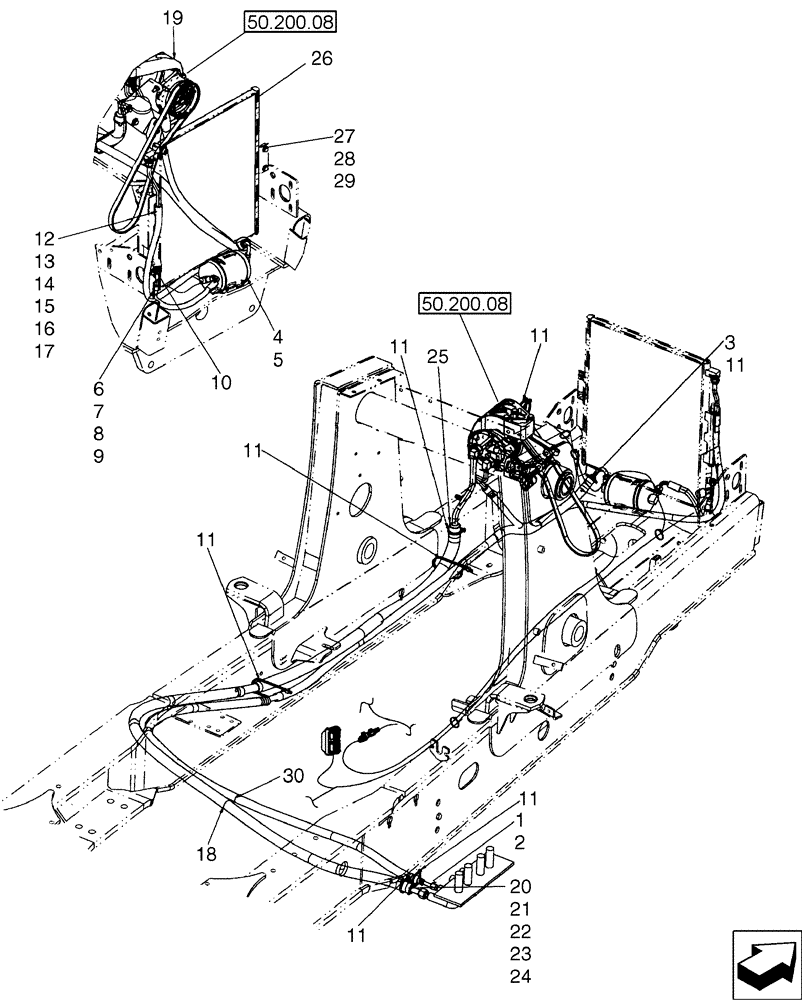

Схема запчастей Case 580SM - (50.200.17) - CAB - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER (50) - CAB CLIMATE CONTROL
29
5
6
13
11
50.200.08
11
30
2
11
50.200.08
23
7
1
17
11
20
14
19
25
22
11
12
11
28
18
8
27
3
11
24
16
10
15
21
26
9
4

Артикул

Название

Примечание

Количество

1

87630219

A/C HOSE,8mm ID x 2930mm L

2930 mm, Receiver Drier to Cab; Incl. Ref 2

1шт.

2

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

3

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

460 mm (18-1/8 in)

2шт.

4

86984155

RECEIVER-DRYER

1шт.

5

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

6

87630218

A/C HOSE,340mm L

340 mm, Condenser to Drier; Incl. Ref 7 - 9

1шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

3шт.

8

1250594C1

CORE

Valve, High Pressure Switch

1шт.

9

122081A1

FITTING,M10 x 1.25 x 26.43mm L

Switch

1шт.

10

232948A1

SWITCH, A/C HIGH PRE

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

10шт.

12

87590156

A/C HOSE

1350 mm; Compressor to Condenser; Incl. Ref 13 - 17

1шт.

13

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 D x 1/16

1шт.

14

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

15

1999926C1

PIPE FITTING

1шт.

16

1250594C1

CORE

Valve

1шт.

17

122554A1

CAP

Sealing

1шт.

18

87726951

HOSE PROTECTION,26.3mm ID x 1200mm L

Guard, 1200 mm (47-1/4 in)

1шт.

19

87548077

AIRCOND. COMPRESSOR

Component Parts Not Serviced Separately

1шт.

20

87630220

HOSE ASSY.,16mm ID x 2425mm L

2425 mm, Cab to Compressor; Incl. Ref 21 - 24

1шт.

21

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

22

1999927C1

FITTING

1шт.

23

1250594C1

CORE

Valve

1шт.

24

122553A1

CAP

Sealing

1шт.

25

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

Sleeve, 400 mm (15-3/4 in)

1шт.

26

87546291

CONDENSER

1шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

28

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

29

833-40408

NUT,M8, U

2шт.

30

87726950

HOSE PROTECTION

Guard, 1200 mm (47-1/4 in)

1шт.

Выбрано товаров: 30
