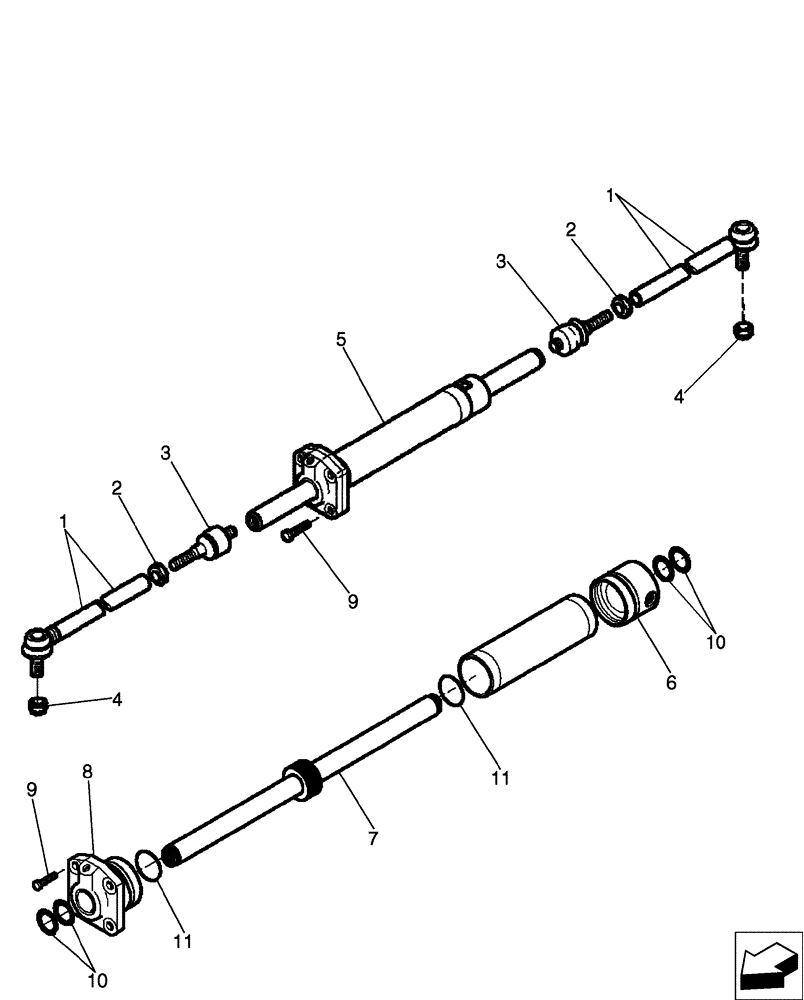

Запчасти Case 580SM (41.216.06) - AXLE, FRONT DRIVE - CYLINDER, STEERING (41) - STEERING

87395365

4WD AXLE ASSY

Front, 580SM Models With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

87400175

4WD AXLE ASSY

Front, 580SM+ Models With Or Without Powershift Transmission, Incl. Ref 1 - 11

1шт.

1

87710133

STEERING TIE-ROD

Arm

1шт.

2

390030A1

NUT

1шт.

3

112509A1

BALL JOINT

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

M18

2шт.

5

87710158

STEERING CYLINDER

Incl. Ref 6 - 16, Order 87710144 Kit to Service Seals

1шт.

6

87710142

CYLINDER HEAD

1шт.

7

87710143

ROD

1шт.

8

87710141

CYLINDER END CAP

Gland

1шт.

9

87710137

BOLT

M12 x 35

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL Wiper

4шт.

11

NSS

NOT SOLD SEPARAT

O-RING

2шт.

87710144

OIL SEAL

Incl. Ref 10, 11

1шт.
