(41.216.05) - AXLE, FRONT (86990837) - CYLINDER, STEERING

Запчасти Case 580SM (41.216.05) - AXLE, FRONT (86990837) - CYLINDER, STEERING (41) - STEERING

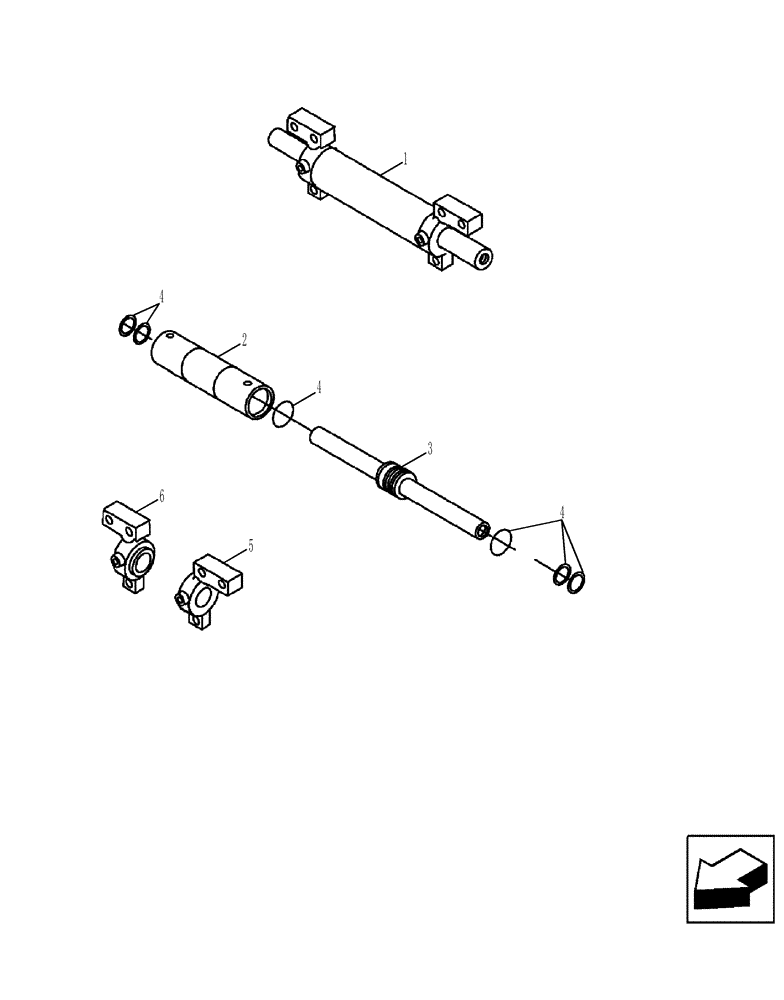

Схема запчастей Case 580SM - (41.216.05) - AXLE, FRONT (86990837) - CYLINDER, STEERING (41) - STEERING
3
5
1
4
4
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

86990837

AXLE

Front, Two Wheel Drive, Incl. 1 - 6

1шт.

1

401055A1

STEERING CYLINDER

(Two Wheel Drive) Incl. Ref 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE Cylinder

1шт.

3

401062A1

PISTON ROD

1шт.

4

401061A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

5

401063A1

HEAD ASSY.

Right-Hand

1шт.

6

401064A1

HEAD ASSY.

Left-Hand

1шт.
