(39.125.02) - FRAME - LOADER LINKAGE

Запчасти Case 580SM (39.125.02) - FRAME - LOADER LINKAGE (39) - FRAMES AND BALLASTING

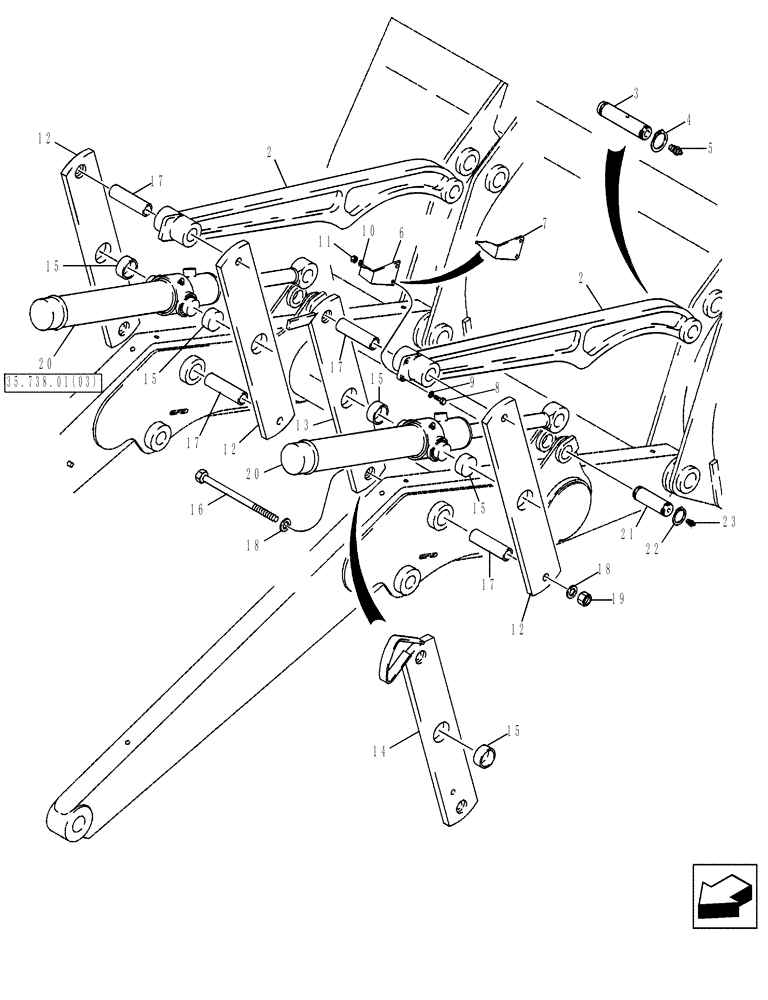

Схема запчастей Case 580SM - (39.125.02) - FRAME - LOADER LINKAGE (39) - FRAMES AND BALLASTING
15
12
11
10
6
17
17
16
23
12
20
18
12
17
4
15
35.738.01(03)
2
8
13
14
20
3
18
15
9
15
7
17
15
21
2
5
19
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

118901A1

PIN,40mm OD x 180mm L

2шт.

4

800-44040

SNAP RING,M40, Ext

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

D121194

POINTER

Models Without Clam Bucket

1шт.

7

250851A1

POINTER

Models With Clam Bucket

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

139180A1

LINK ASSY.

Bucket Cylinder, Outer Right-Hand; Inner and Outer Left-Hand; Incl. Ref 15

3шт.

15

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

1шт.

16

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

17

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

4шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

19

829-1420

NUT,M20, Cl 10

4шт.

20

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket; See Figure 08-63; See Figure 09-04

2шт.

21

87724438

GROOVED PIN,40mm OD x 138.3mm L

2шт.

22

800-44040

SNAP RING,M40, Ext

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
