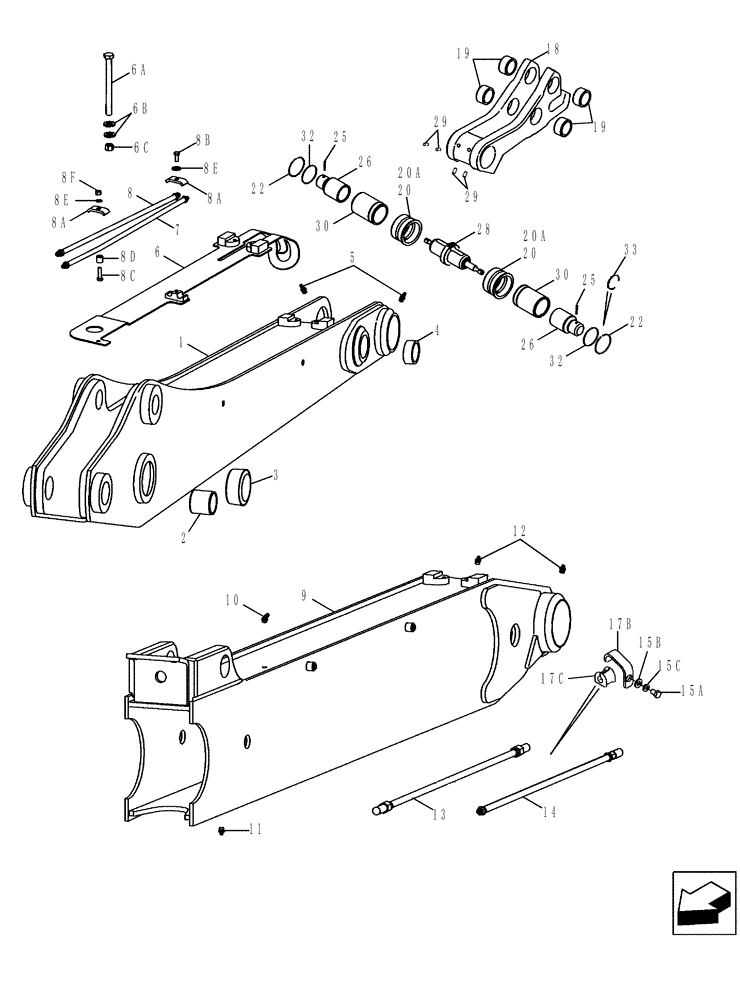

Запчасти Case 580SM (39.121.05) - DIPPER, BACKHOE - COUPLER, HYDRAULIC (MODELS WITH HYDRAULIC BACKHOE BUCKET COUPLER) (39) - FRAMES AND BALLASTING

REF

INSTRUCTION

DIPPER Standard

1шт.

1

404807A1

DIPPER

Standard; Incl. Ref 2 - 5, 20A

1шт.

2

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.

3

D150121

BUSHING,70.19mm ID x 94mm OD x 40mm L

70 ID x 36 mm lg

2шт.

3a

D120450

PLUG

Not Illustrated

4шт.

4

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm lg

2шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

6

405716A1

PLATE

1шт.

6a

827-12240

BOLT,Hex, M12 x 1.75 x 240mm, Cl 10.9

1шт.

6b

378921A1

WASHER

2шт.

6c

829-1412

NUT,M12, Cl 10.9

1шт.

7

406168A1

TUBE

1шт.

8

406172A1

TUBE

1шт.

8a

D138055

CLAMP

2шт.

8b

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

1шт.

8c

607-8035

BOLT,Hex, M8 x 35mm, Cl 10.9

1шт.

8d

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

1шт.

8e

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8f

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

REF

INSTRUCTION

DIPPER Extendable

1шт.

9

392559A3

DIPPER

Outer; Extendable; Incl. Ref 10 - 12, 20

1шт.

10

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

11

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

403840A1

TUBE

1шт.

14

403400A1

TUBE

1шт.

15a

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

4шт.

15b

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15c

892-11010

LOCK WASHER,M10

4шт.

17b

445757A1

BRACKET

4шт.

17c

D67296

GROMMET

4шт.

REF

INSTRUCTION

COUPLER Hydraulic Backhoe Bucket

1шт.

18

417681A1

COUPLING

Incl. Ref 19

1шт.

19

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

20

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

Models With Extendable Dipper

2шт.

20a

400935A3

BUSHING

Models Without Extendable Dipper

2шт.

22

406624A1

RING,81.38mm OD, Ext

2шт.

25

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

28

87615847

HYDRAULIC CYLINDER

Coupler

1шт.

28

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

29

418070A1

SET SCREW,M10 x 20mm

M10 x 20; Hex Socket

4шт.

30

448676A1

HYD CYL SLEEVE,76.4mm ID x 88.8mm OD x 112.5mm L

2шт.

32

434891A1

WIPER SEAL

Wiper

2шт.

33

445364A1

SEALING RING,88mm OD

SEALRING Service; Included In Coupler Cylinder Seal Kit

2шт.
