Запчасти Case 580SM (39.105.07) - BACKHOE - BOOM AND SWING TOWER (39) - FRAMES AND BALLASTING

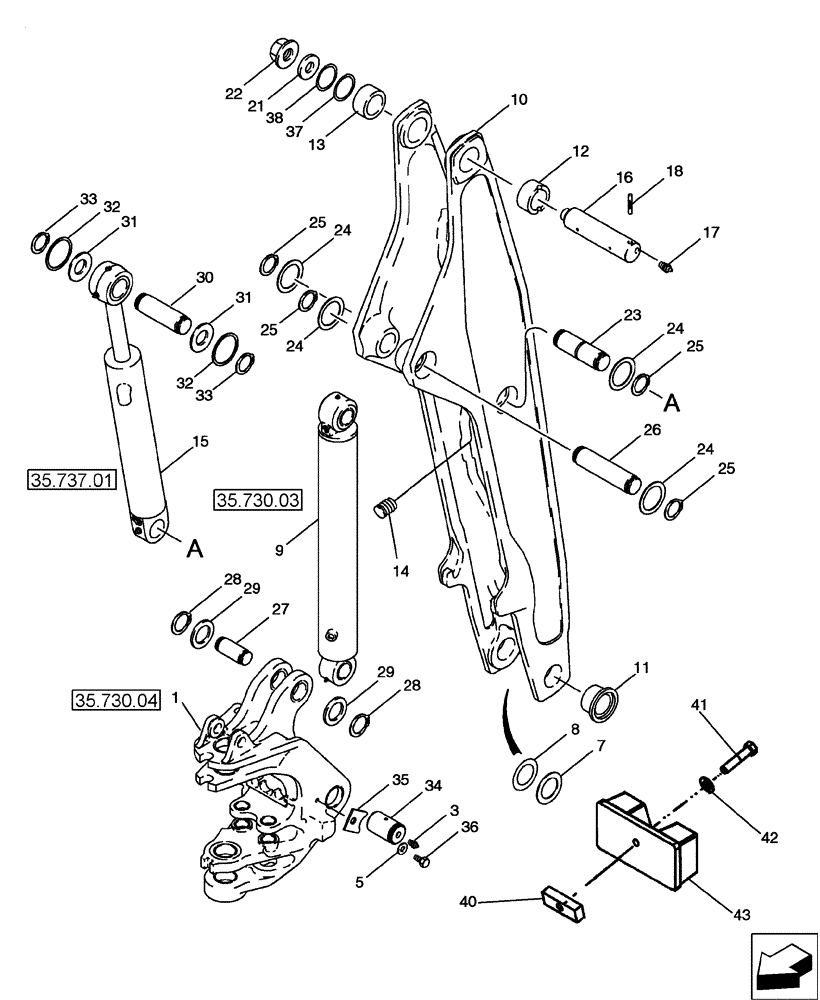

Схема запчастей Case 580SM - (39.105.07) - BACKHOE - BOOM AND SWING TOWER (39) - FRAMES AND BALLASTING
12
24
22
40
31
43
25
3
24
36
37
25
35.737.01
35.730.04
35.730.03
25
32
8
9
13
17
42
29
18
5
33
23
28
14
30
41
34
7
28
33
10
21
15
16
26
24
27
35
38
11
31
1
32
29
24
25

Артикул

Название

Примечание

Количество

1

87737180

TOWER

Swing

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

7

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

1шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

71 ID x 114 mm

1шт.

9

87711763

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 842.5mm Stroke

Backhoe Boom; 133 ID x 843 mm strk, Replaces 87687997

1шт.

10

122284A2

BOOM

Incl. Ref 11 - 14

1шт.

11

D151071

BUSHING,70.19mm ID x 94mm OD x 38mm L

70 ID x 34 mm lg

2шт.

12

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 ID x 44 mm lg; With Slot For Groove Pin; Right-Hand Side

1шт.

13

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

70 ID x 44 mm lg; Without Slot For Groove Pin; Left-Hand Side

1шт.

14

D120450

PLUG

7шт.

15

183795A4

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 582.9mm Stroke

127 ID x 583 mm strk; Dipper

1шт.

16

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-Dipper

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

18

135-51652

GROOVED PIN,12.7mm OD x 82.55mm L

1шт.

21

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

22

181042A1

FLANGE NUT

Flange, Special

1шт.

23

87713664

GROOVED PIN,60mm OD x 240mm L

Dipper Cylinder Closed End to Boom; Replaces 123167A2

1шт.

24

H433285

SPACER

4шт.

25

800-4155

SNAP RING,55mm ID

4шт.

26

123168A2

PIN,60mm OD x 290mm L

Boom Cylinder Closed, Serial Range: End-Boom

1шт.

27

190313A1

PIN,60mm OD x 159.6mm L

Boom Cylinder Rod End to Swing Tower

1шт.

28

103-11237

SNAP RING,#237, Ext

2шт.

29

123318A1

WASHER,62mm ID x 86mm OD x 1.7mm Thk

62 mm ID

2шт.

30

D138022

PIN,50mm OD x 240mm L

1шт.

31

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

32

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

33

103-16175

SNAP RING,#175, Ext

2шт.

34

87326813

GROOVED PIN,70mm OD x 112mm L

Boom to Swing Tower

2шт.

35

303646A1

BRACKET

2шт.

36

604-20035

BOLT,Hex, M20 x 35mm, Cl 8.8

2шт.

37

404834A1

SHIM

Concave

1шт.

38

404835A1

SHIM

Concave

1шт.

40

122993A1

BAR

1шт.

41

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

43

87611723

PAD

1шт.
