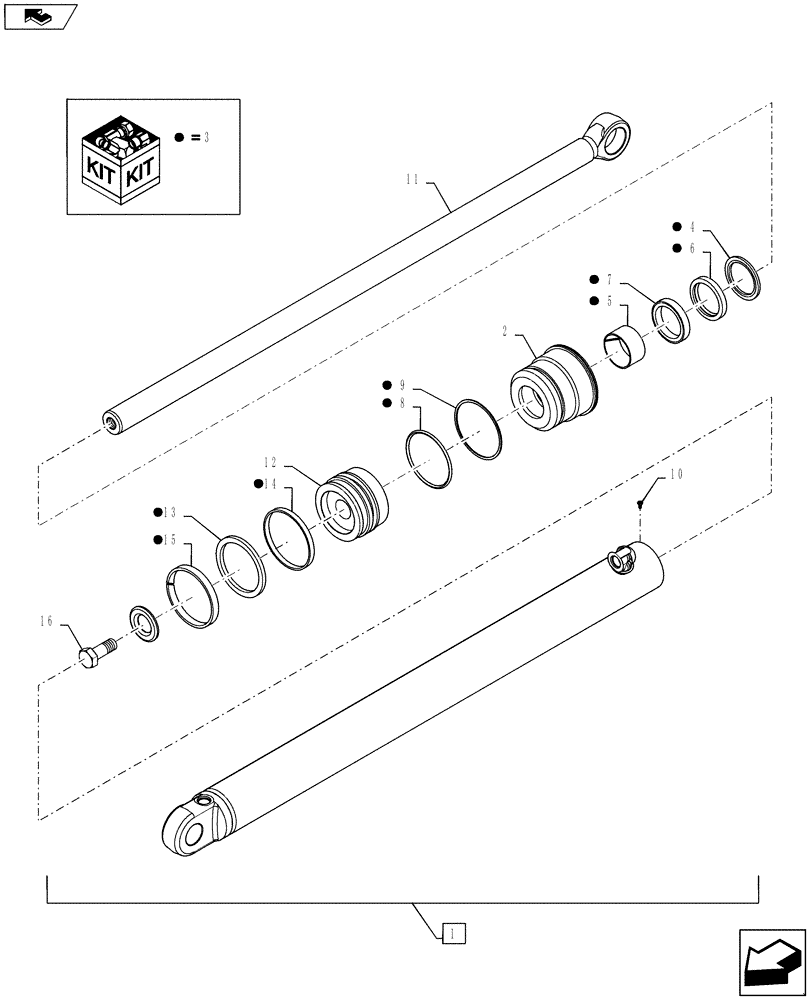

Запчасти Case 580SM (35.740.02) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS

1

1340969C2

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

76 ID x 1068 mm strk, Incl Ref 2 - 16

1шт.

1340969C2R

REMAN-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

1340969C2C

CORE-HYD CYLINDER

Dipper Extention Cylinder - For N.A. Only

1шт.

2

297281A1

GLAND

1шт.

3

1543267C1

SEAL KIT

Incl Ref 4 - 9, 13 - 15

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

11

1980296C1

PISTON ROD

44 mm (1-3/4 in) dia

1шт.

12

G107277

PISTON

1шт.

16

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 x 2,5 in, Incl. Washer

1шт.
