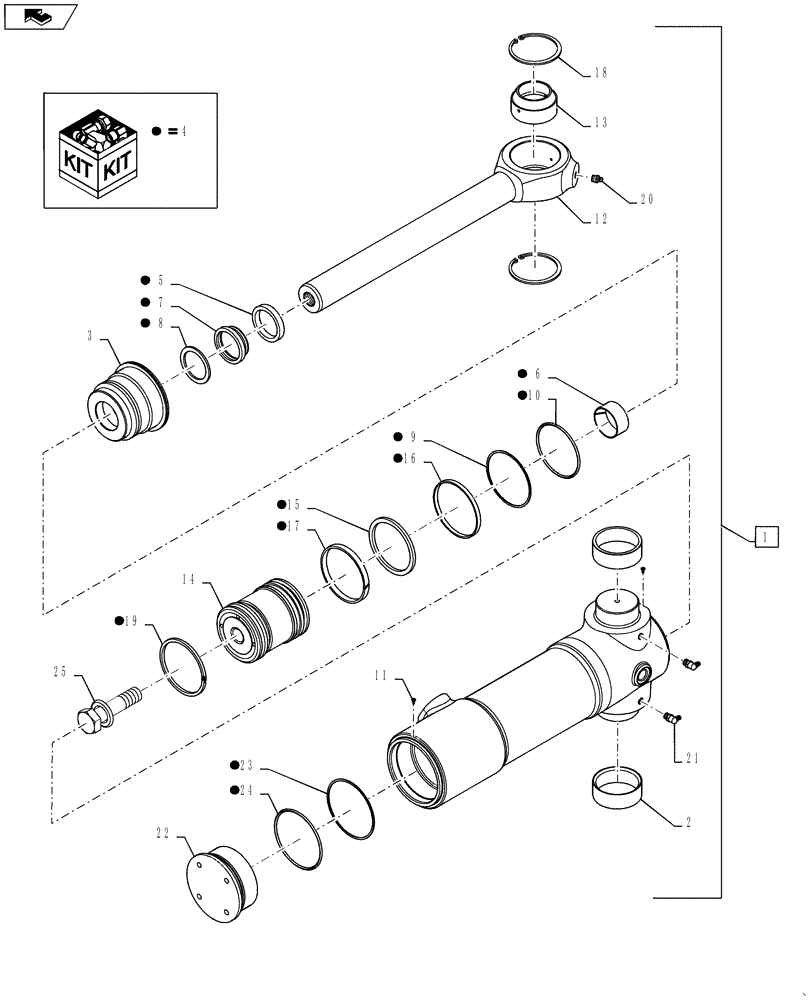

Запчасти Case 580SM (35.739.02[02]) - CYLINDER ASSY - BACKHOE SWING (580SM) (35) - HYDRAULIC SYSTEMS

1

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

95 ID x 292 mm strk, Incl. Ref 2 - 25

2шт.

2

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

Bushing

2шт.

3

188032A2

GLAND,95.3mm Bore, 50.8mm Rod, 82.4mm W

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.

12

87413722

PISTON ROD

51 mm (2 in) dia, Incl. Ref 13, 13A

1шт.

13

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

1шт.

14

188034A3

PISTON,94.95mm Bore, 50.83mm Rod, 116mm W

1шт.

18

100-21315

SNAP RING,3.156", Int, #315

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

25

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

1 x 4.0; Incl. Washer

1шт.
