(35.739.01) - HYDRAULICS - CYLINDER, BACKHOE SWING (STD. W/ MECHANICAL CONTROLS)

Запчасти Case 580SM (35.739.01) - HYDRAULICS - CYLINDER, BACKHOE SWING (STD. W/ MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

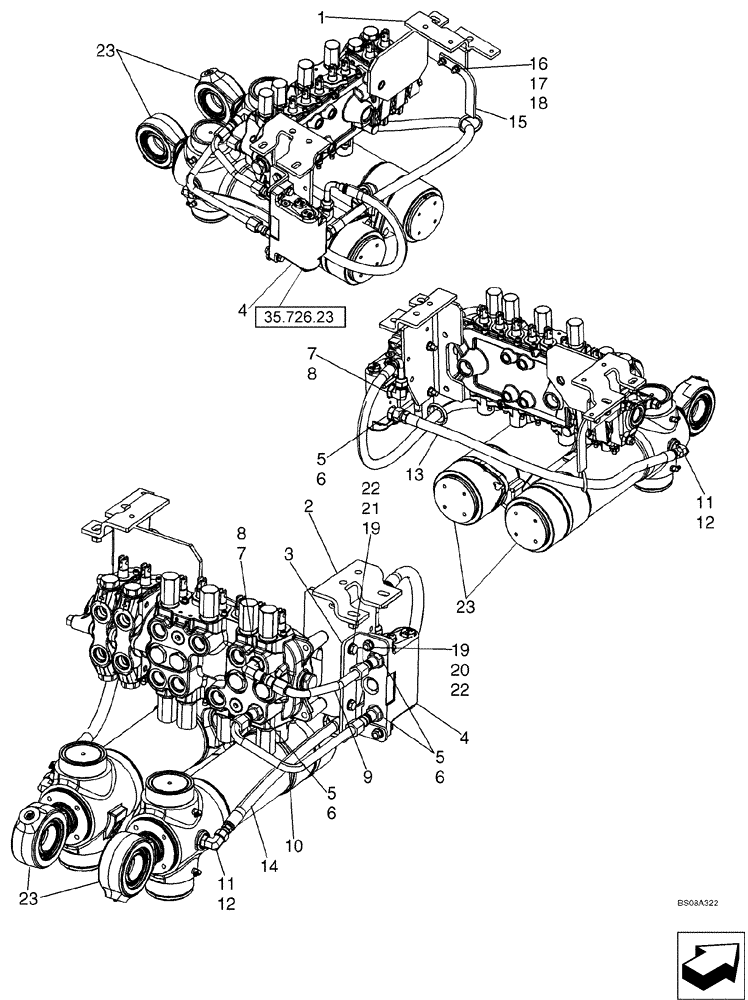

Схема запчастей Case 580SM - (35.739.01) - HYDRAULICS - CYLINDER, BACKHOE SWING (STD. W/ MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS
12
6
11
9
1
13
19
3
16
17
20
18
14
23
5
7
51
21
6
4
35.726.23
22
8
2
8
5
12
6
22
11
23
5
7
23
4
19
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87643646

BRACKET

1шт.

2

87703557

BRACKET

1шт.

3

87648711

BRACKET

1шт.

4

87480653

DAMPING VALVE

Swing Cushion; Replaces 87449373

1шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 6

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

87646838

HYDRAULIC HOSE

1шт.

10

87633457

HYDRAULIC HOSE

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87633470

HOSE ASSY.

1шт.

14

87633514

HOSE ASSY.

1шт.

15

87633538

BRACKET

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

20

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

21

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

23

139808A1

CYLINDER ASSY.

102 ID x 292 mm strk; Swing

2шт.

24

87441076

HYDRAULIC HOSE,9.53mm ID x 802mm L

Cylinder to Cylinder. Same as Pilot Units Fig. 35.738.04 Ref. 23 (Not Shown)

2шт.
