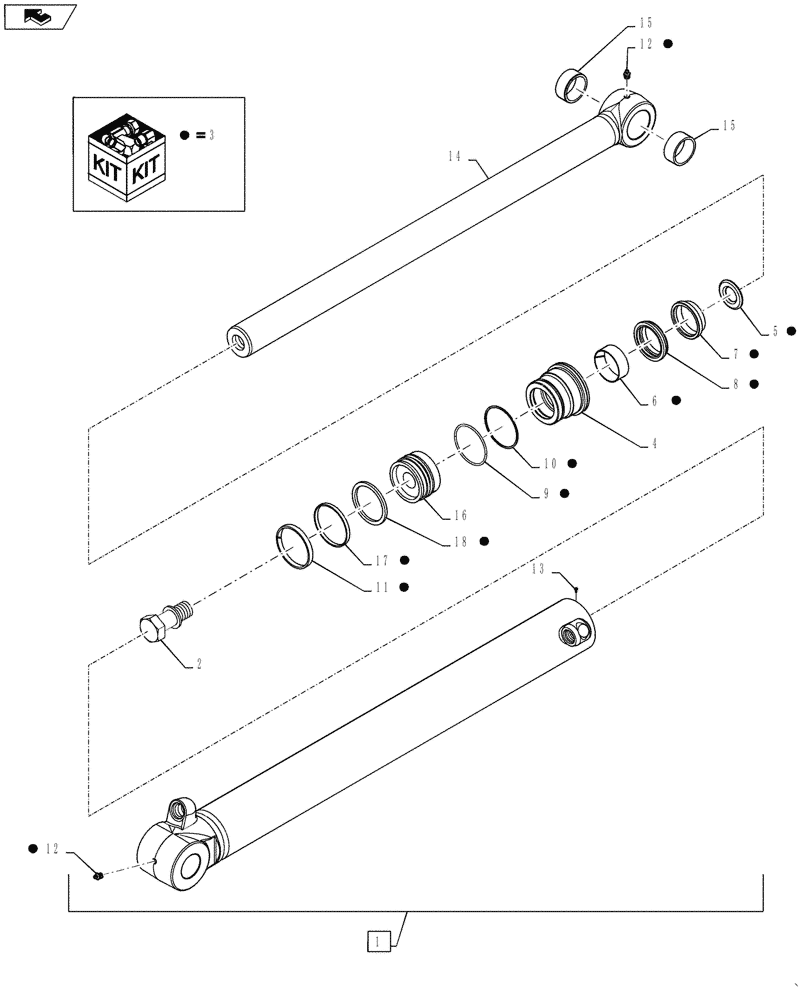

Запчасти Case 580SM (35.738.02) - CYLINDER ASSY - BACKHOE BUCKET (35) - HYDRAULIC SYSTEMS

1

235916A1

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 871.7mm Stroke

80 ID x 872 mm strk; Incl Ref 2 - 21

1шт.

2

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Includes Washer

1шт.

3

1542923C2

SEAL KIT,63.5mm Rod x 88.9mm Bore

1шт.

4

235921A1

CYLINDER END CAP

GLAND

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

7

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl 7 - 8

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal

1шт.

9

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

10

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

11

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

196164A1

PISTON ROD

64 mm (2-1/2 in) dia; Incl. Ref 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

2шт.

16

1986906C1

PISTON

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.
