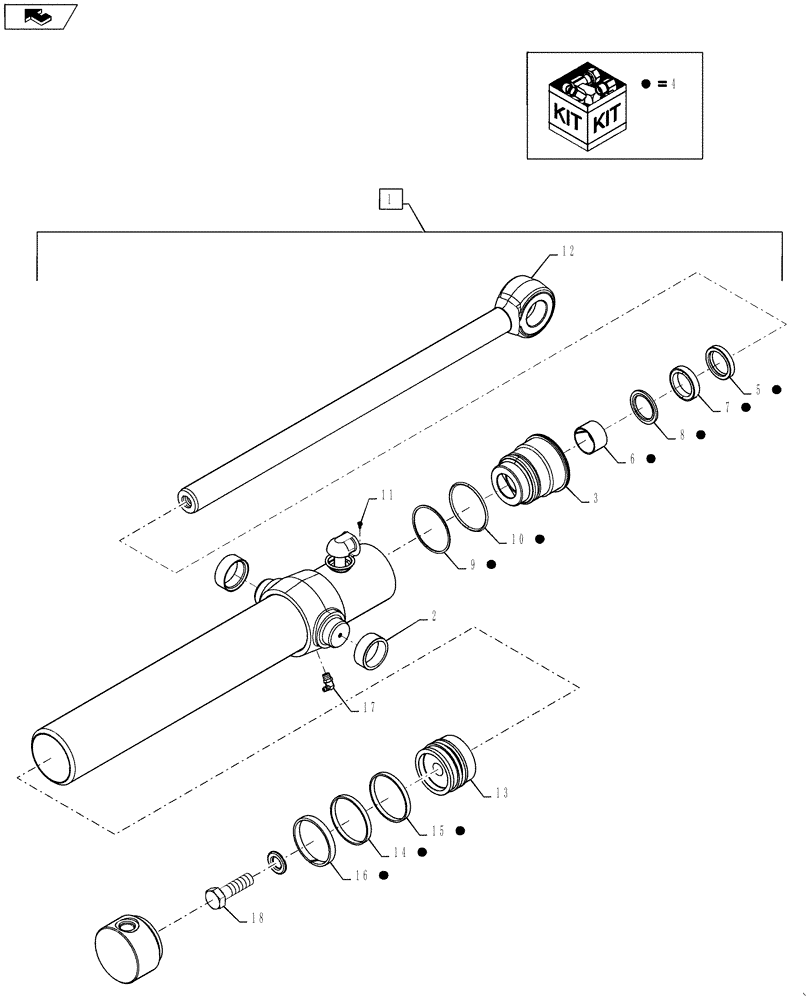

Запчасти Case 580SM (35.738.01[03]) - CYLINDER ASSY - LOADER BUCKET (35) - HYDRAULIC SYSTEMS

1

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket; Incl. Ref 2- 18

2шт.

2

113135A2

BARREL

Incl 3

2шт.

3

297280A1

GLAND

1шт.

4

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl Ref 5 - 10, 14 - 16

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

87609666

PISTON ROD

38 mm (1-1/2 in) dia

1шт.

13

G108518

PISTON

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 x 2.5 in, Includes Washer

1шт.
