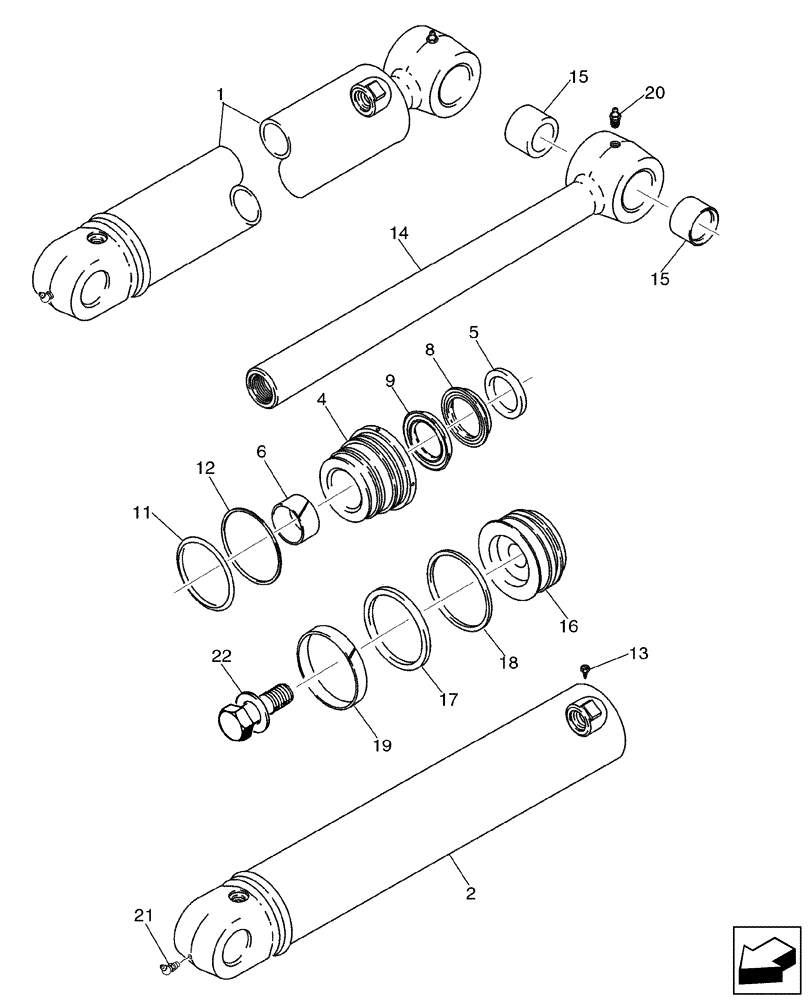

Запчасти Case 580SM (35.737.01) - CYLINDER ASSY - BACKHOE DIPPER (35) - HYDRAULIC SYSTEMS

1

183795A4

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 582.9mm Stroke

127 ID x 583 mm strk; Incl. Ref 2, 4 - 22

1шт.

4

1542914C1

GLAND,127mm Bore, 63.5mm Rod, 91.8mm W

1шт.

1542915C2

SEAL KIT

Incl. Ref 5 - 12, 17 - 19; Plus Two Additional Seals Not Used In This Application

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 1542915C2 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 1542915C2 Seal Kit

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

12

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

13

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

178850A1

PISTON ROD

64 mm (2-1/2 in) dia; Incl. Ref 15

1шт.

15

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

2шт.

16

311109A1

PISTON

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1,5 x 3,5 in, Includes Washer

1шт.
