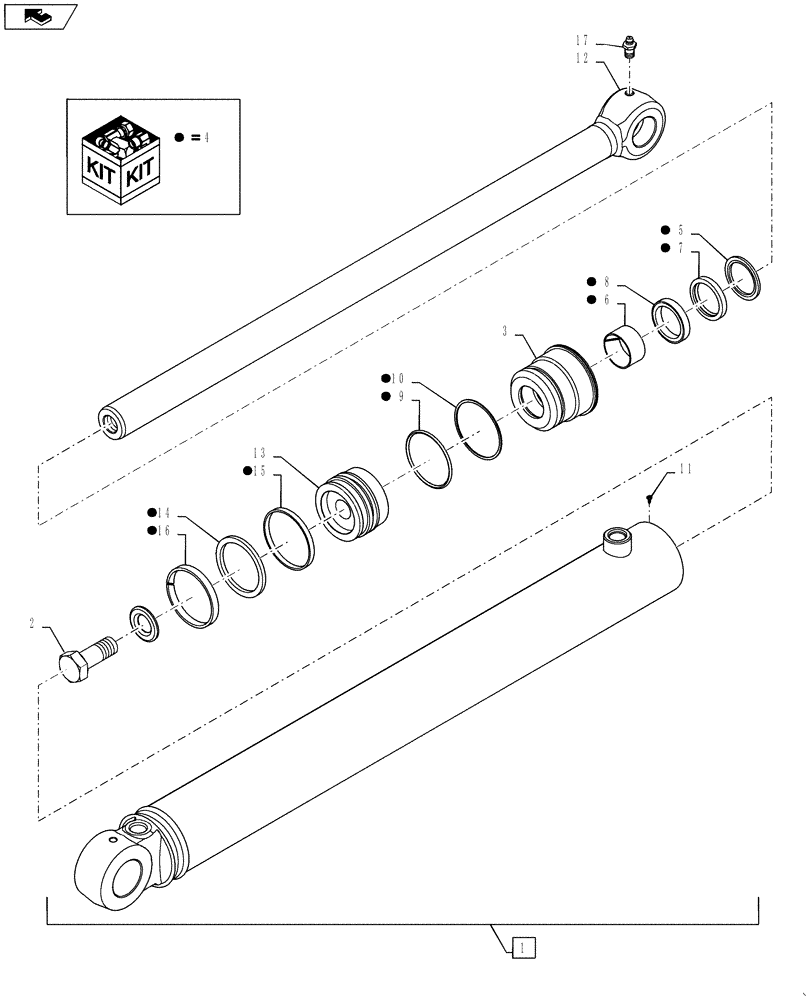

Запчасти Case 580SM (35.736.03) - CYLINDER ASSY - LOADER LIFT (35) - HYDRAULIC SYSTEMS

1

384240A1

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

82.6 ID x 766 mm strk; Loader; Incl. Ref 2 - 18

2шт.

2

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 x 2,5 in; Includes Washer

1шт.

3

1980321C3

GLAND

1шт.

4

1543260C1

SEAL KIT

Incl Ref 5 - 10, 14 - 16

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

133083A1

PISTON ROD

44 mm (1-3/4 in) dia

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
