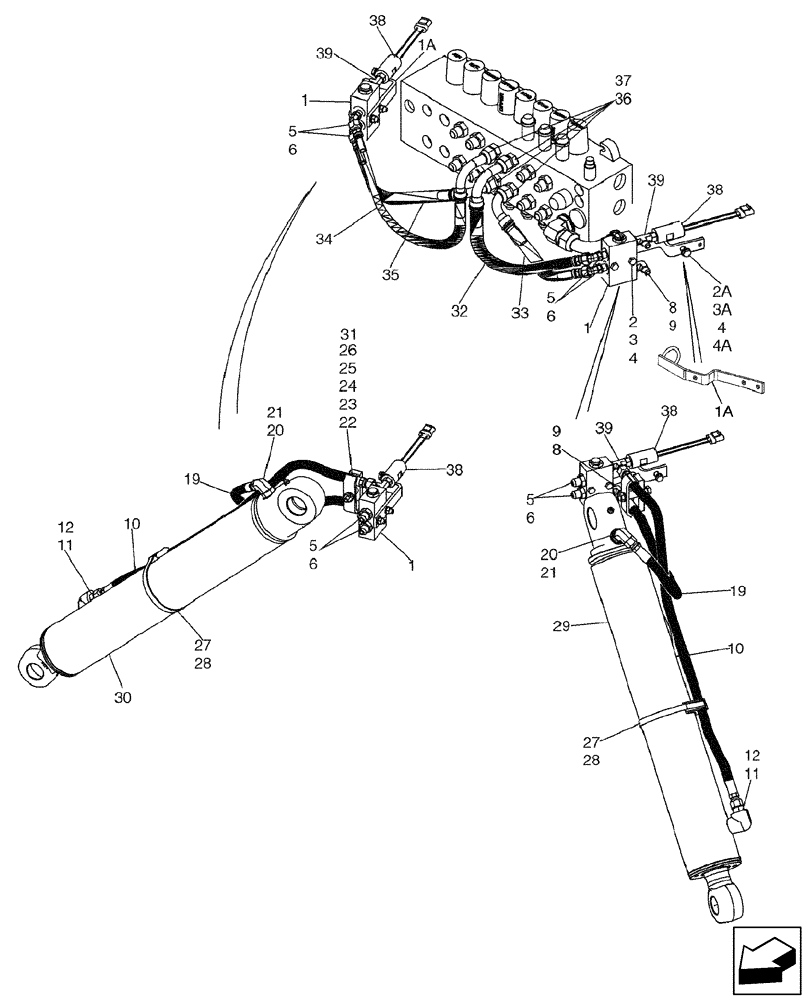

Запчасти Case 580SM (35.732.03) - HYDRAULICS - CYLINDER, BACKHOE STABILIZER (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

Models With Pilot Controls

1шт.

1

85802820

CHECK VALVE

Load; Includes 85820159, 85820160, 85821126

2шт.

85821126

SEAL

Incl. PN 85820160 & 85820159

1шт.

1a

87450318

BRACKET

2шт.

2

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

2a

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

3

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

2шт.

3a

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

4a

87437840

SPACER,11.5mm L

2шт.

5

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 6

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 9; (2) Used On Models With Auto-Up; (4) Used On Models Without Auto-Up

2-4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

87439306

HYDRAULIC HOSE,9.53mm ID x 830mm L

830 mm (32-11/16 in)

2шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 12; 580SM Models

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 12; 580SM+ Models

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

87429584

HYDRAULIC HOSE,9.53mm ID x 500mm L

500 mm (19-11/16 in)

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

23

87420673

HOSE CLAMP

2шт.

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

2шт.

24

87439665

SPACER,11.30mm ID x 15.88mm OD x 19.50mm L

2шт.

25

87420672

SPACER,25mm W x 80mm L x 12mm Thk

Clamp

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

27

D142787

SPACER

2шт.

28

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

580SM Models

2шт.

30

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 ID x 553 mm strk; Stabilizer; RH; 580SM Models

1шт.

30

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer; RH; 580SM+ Models

1шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

32

87437939

HYDRAULIC HOSE

440 mm (17-3/8 in)

1шт.

33

87437938

HYDRAULIC HOSE

350 mm (13-13/16 in)

1шт.

34

87437941

HYDRAULIC HOSE

485 mm (19-1/8 in)

1шт.

35

87437940

HYDRAULIC HOSE

400 mm (15-3/4 in)

1шт.

36

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 37

4шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

38

87482634

PRESSURE SWITCH

Pilot Control; Includes 237-6004 O-Ring; Used On Models With Auto-Up; 12 inch Wire Lead; With Rubber Snubbing; CNH Part Number Stamped On Body Of Switch; North American Models

2шт.

38

86992557

PRESSURE SWITCH

Pilot Control; Includes 237-6004 O-Ring; Used On Models With Auto-Up; 6 inch Wire Lead; CNH Part Number Stamped On Body Of Switch; European Models

2шт.

39

87423033

TEE

9/16 x 9/16 Or x 7/16 Or; Includes 237-6004, 237-6006 O-Ring; Used On Models With Auto-Up

2шт.
