(35.732.02[01]) - CYLINDER ASSY - BACKHOE STABILIZER (580SM)

Запчасти Case 580SM (35.732.02[01]) - CYLINDER ASSY - BACKHOE STABILIZER (580SM) (35) - HYDRAULIC SYSTEMS

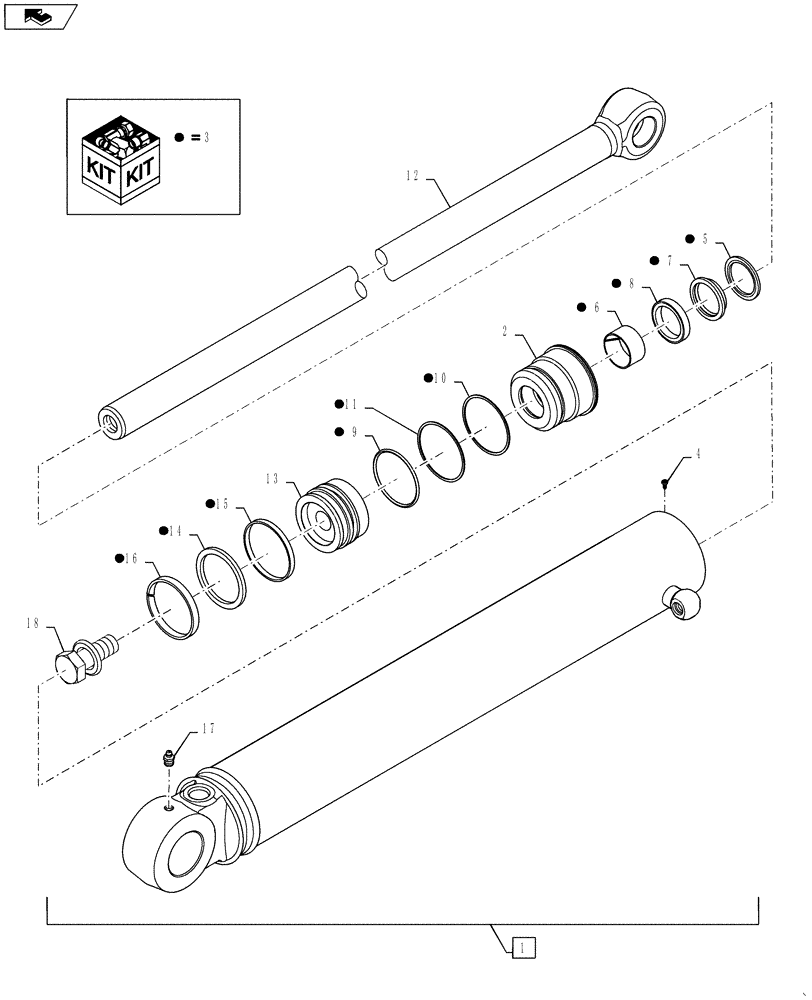

Схема запчастей Case 580SM - (35.732.02[01]) - CYLINDER ASSY - BACKHOE STABILIZER (580SM) (35) - HYDRAULIC SYSTEMS
12
10
3
3
11
1
6
7
5
3
18
3
8
14
3
17
16
home
15
3
3
3
3
3
9
3
4
13
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

Backhoe Stabilizer; LH/RH; 108 ID x 553 mm strk; Incl. Ref 2 - 18

2шт.

2

297284A1

GLAND

1шт.

4

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

Static Head

1шт.

12

123726A1

PISTON ROD

51 mm (2 in) dia

1шт.

13

123732A1

PISTON

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1,25 x 3,00 in, Includes Washer

1шт.
