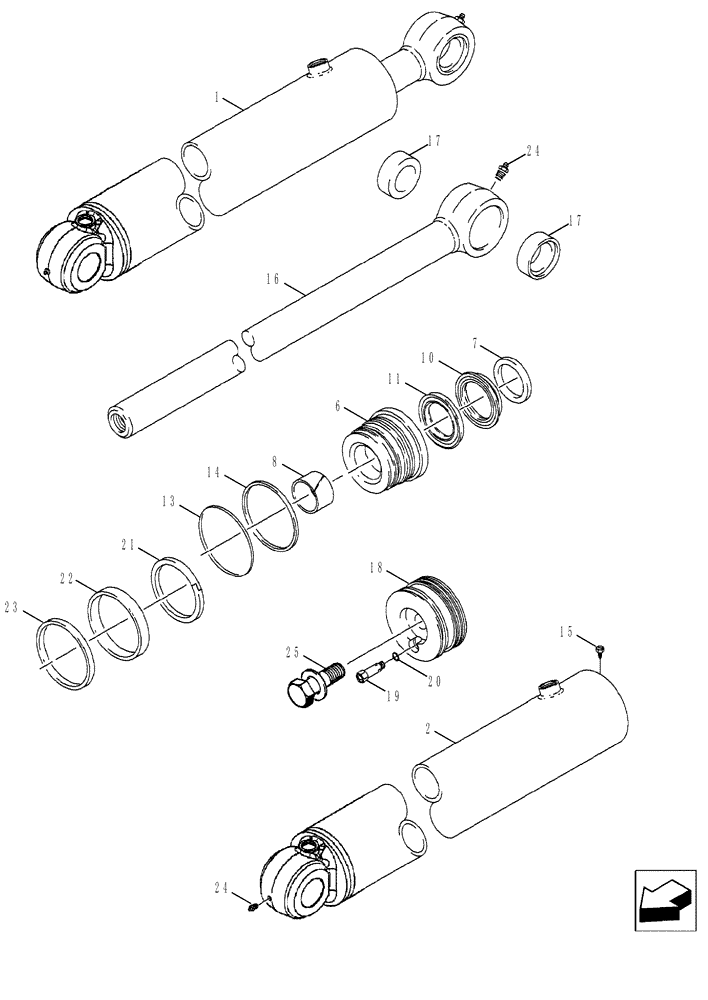

Запчасти Case 580SM (35.730.03) - CYLINDER ASSY - BACKHOE BOOM (35) - HYDRAULIC SYSTEMS

1

87711763

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 842.5mm Stroke

Backhoe Boom; 133 ID x 63 mm strk; Incl. Ref 2 - 25; Replaces 87687997

1шт.

2

87618679

BARREL,133.22mm Bore Dia

Tube; Replaces 87687999

1шт.

6

87418279

GLAND

1шт.

87418297

SEAL KIT

Incl. Ref 7 - 14, 21 - 23

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER SEAL

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 87418297 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 87418297 Seal Kit

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

BACK-UP RING

1шт.

15

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON ROD, 63.5 mm (2-1/2 in) dia; Incl. Ref 17

1шт.

17

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

2шт.

18

87618685

PISTON

1шт.

19

1958028C1

VALVE

Cartridge; Component Parts Not Serviced Separately; Incl. Ref 20

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING

1шт.

21

NSS

NOT SOLD SEPARAT

RING, Cast Iron

1шт.

22

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

Includes Washer

1шт.
