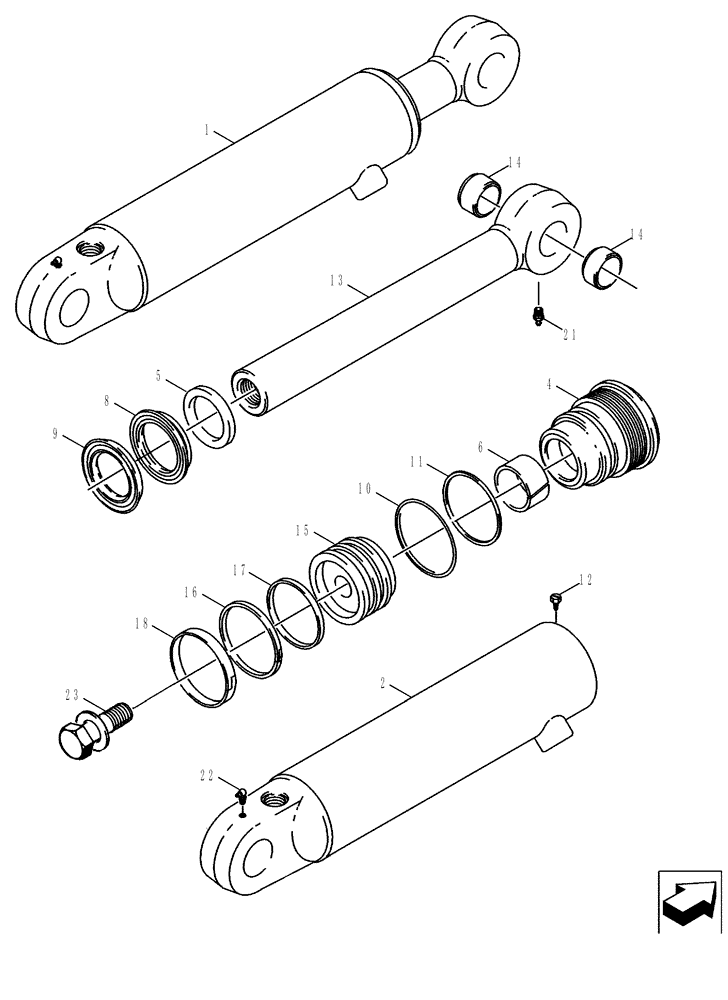

Запчасти Case 580SM (35.730.02) - CYLINDER ASSY - LOADER CLAM (35) - HYDRAULIC SYSTEMS

1

87454017

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 230.6mm Stroke

76 ID x 231 mm strk; RH; Incl. Ref 2 - 23

1шт.

1

87454016

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 230.6mm Stroke

76 ID x 231 mm strk; LH; Incl. Ref 2 - 23

1шт.

2

87454907

BARREL

RH; 87454017 Cylinder; Includes (2) 30634 Bushings; If Used

1шт.

2

87454908

BARREL

LH; 87454016 Cylinder; Includes (2) 30634 Bushings; If Used

1шт.

4

297281A1

GLAND

1шт.

1543267C1

SEAL KIT

Incl Ref 5 - 11, 16 - 18

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 1543267C1 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 1543267C1 Seal Kit

1шт.

10

NSS

NOT SOLD SEPARAT

-231, 70 Duro, 2.609" ID x .139" Thk

1шт.

11

NSS

NOT SOLD SEPARAT

Ring

1шт.

12

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

13

TBD

44 mm (1-3/4 in) dia; Incl. Ref 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

23

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1,0 x 2,5 in, Includes Washer

1шт.
