(35.730.01[01]) - HYDRAULICS - CYLINDER, LOADER CLAM (580SM/SM+)

Запчасти Case 580SM (35.730.01[01]) - HYDRAULICS - CYLINDER, LOADER CLAM (580SM/SM+) (35) - HYDRAULIC SYSTEMS

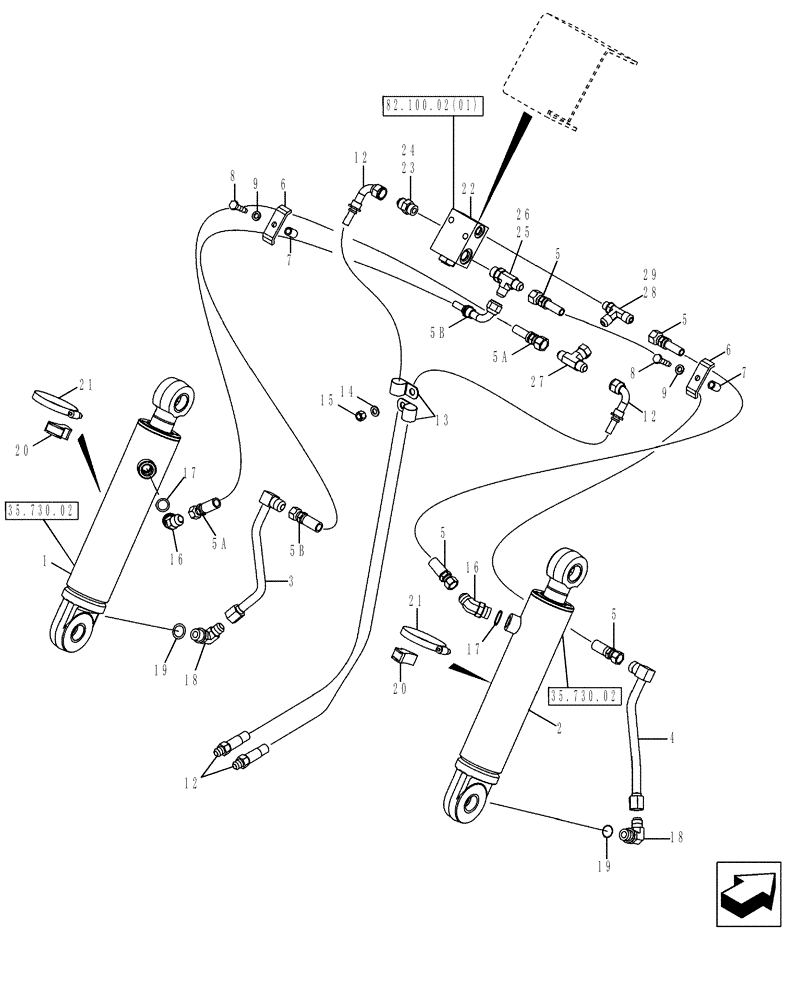

Схема запчастей Case 580SM - (35.730.01[01]) - HYDRAULICS - CYLINDER, LOADER CLAM (580SM/SM+) (35) - HYDRAULIC SYSTEMS
22
5
29
12
35.730.02
5b
21
13
12
5a
9
7
27
17
12
28
5a
20
9
18
18
16
8
5
5
14
23
5
5b
26
1
2
25
4
82.100.02(01)
8
7
35.730.02
19
17
19
6
15
24
21
16
6
3
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Loader Control Valve; Three Spool

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

5

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

6

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

7

D138055

CLAMP

4шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

3шт.

9

892-11010

LOCK WASHER,M10

3шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

11

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

710 mm (28 in)

2шт.

12

87716486

HYD TUBE

Upper Clam Port

1шт.

13

87716488

HYD TUBE

Lower Clam Port

1шт.

14

D138055

CLAMP

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

23

87478483

HYD TUBE,.625 OD

Upper Clam Port

1шт.

24

87449440

TUBE,.625" OD

Lower Clam Port

1шт.
