Запчасти Case 580SM (35.726.25) - BACKHOE CONTROL TOWER SUPPORT AND SEALS, WITHOUT PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

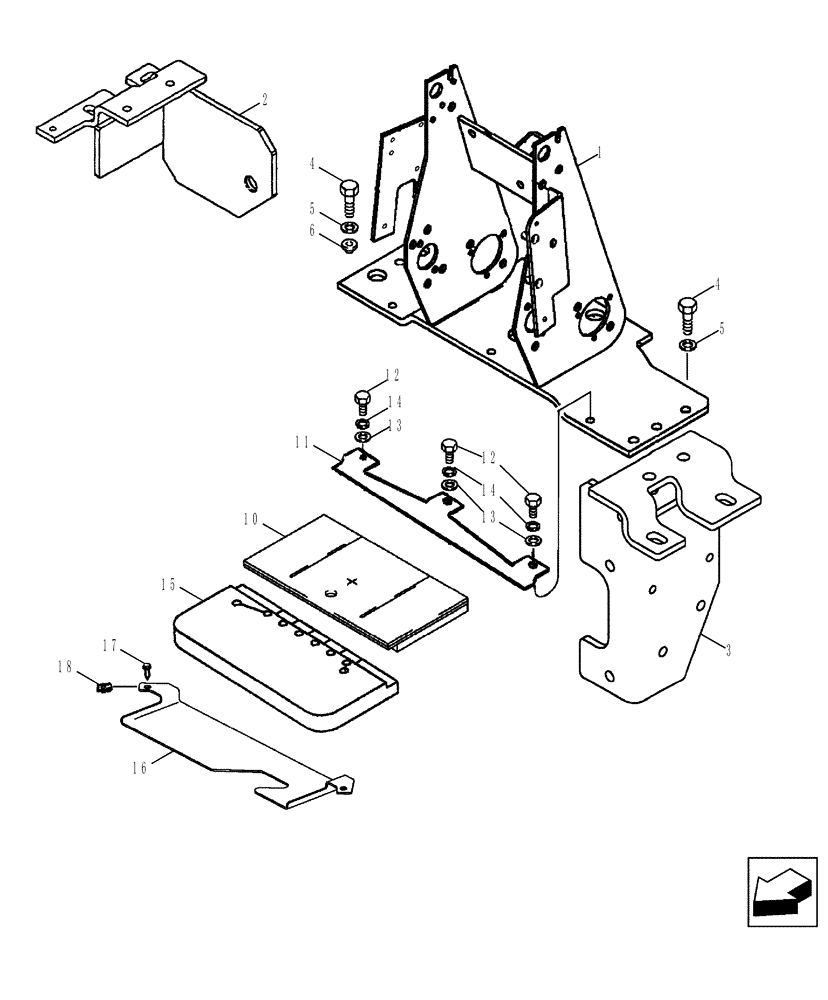

Схема запчастей Case 580SM - (35.726.25) - BACKHOE CONTROL TOWER SUPPORT AND SEALS, WITHOUT PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
18
14
6
4
1
16
14
4
5
11
13
12
13
2
17
5
12
3
15
10

Артикул

Название

Примечание

Количество

1

87418516

SUPPORT

1шт.

2

87448059

SUPPORT

LH

1шт.

3

87452627

SUPPORT

RH

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

6

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

2шт.

10

400069A1

FOAM

1шт.

11

87418518

SUPPORT

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

892-11008

LOCK WASHER,8mm ID

3шт.

15

87439210

FOAM

1шт.

16

397911A1

BRACKET

1шт.

17

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25, Includes Washer, Stainless Steel

2шт.

18

833-40406

NUT,M6, U

2шт.

Выбрано товаров: 15
