(35.726.22[01]) - VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS)

Запчасти Case 580SM (35.726.22[01]) - VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

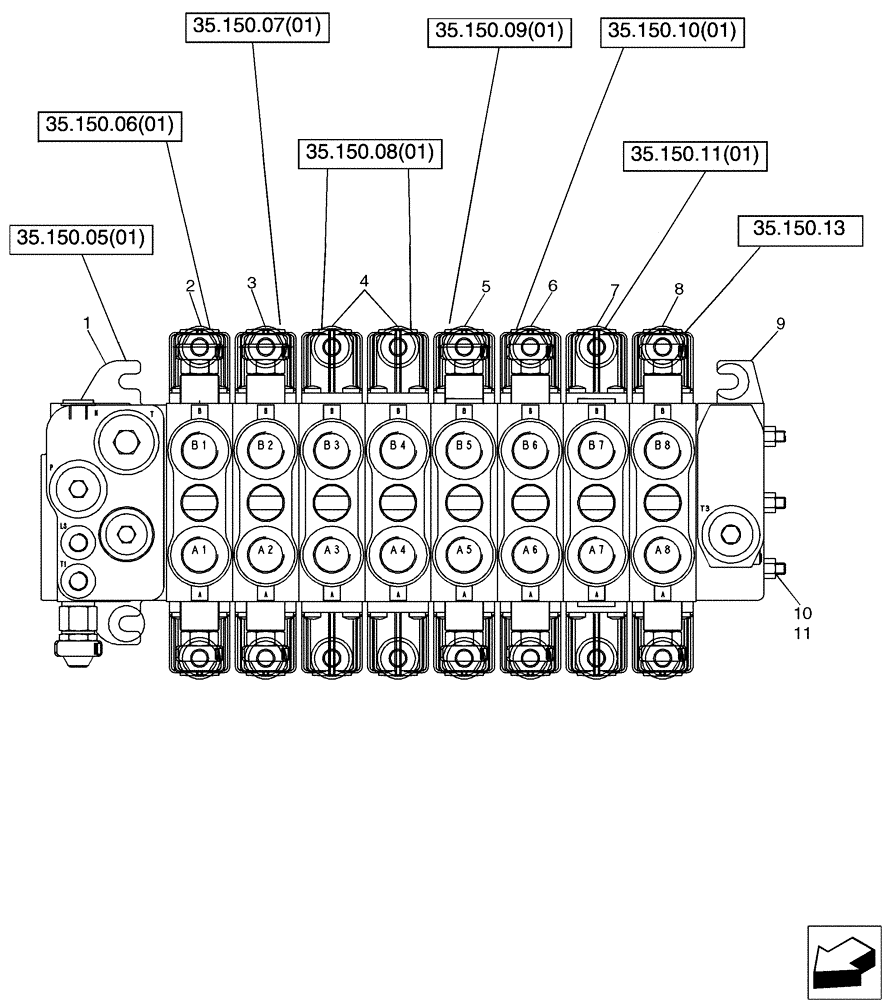

Схема запчастей Case 580SM - (35.726.22[01]) - VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
4
9
35.150.08(01)
35.150.07(01)
11
7
35.150.11(01)
2
3
35.150.05(01)
1
6
35.150.06(01)
5
35.150.13
8
10
35.150.10(01)
35.150.09(01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87577349

CONTROL VALVE

Backhoe 8 Spool; Rexroth No. 08 403 271; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 11

1шт.

1

87441495

HYD VALVE SECTION

Inlet; With Orifice Threaded In LS Cavity

1шт.

2

85826339

HYD VALVE SECTION

Swing

1шт.

3

85826337

HYD VALVE SECTION

Boom

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer; Without Flow Sharing to Provide Open Center Performance

2шт.

5

85826338

HYD VALVE SECTION

Dipper

1шт.

6

85826365

HYD VALVE SECTION

Bucket

1шт.

7

85826341

HYD VALVE SECTION

Extendable Dipper

1шт.

8

85826342

HYD VALVE SECTION

Auxiliary

1шт.

9

NSS

NOT SOLD SEPARAT

OUTLET Section

1шт.

10

87447477

SET OF PARTS

BOLT Tie

3шт.

11

280136

NUT,3/8"-16, G8

3шт.
