(35.726.21[01]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (580SM)

Запчасти Case 580SM (35.726.21[01]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (580SM) (35) - HYDRAULIC SYSTEMS

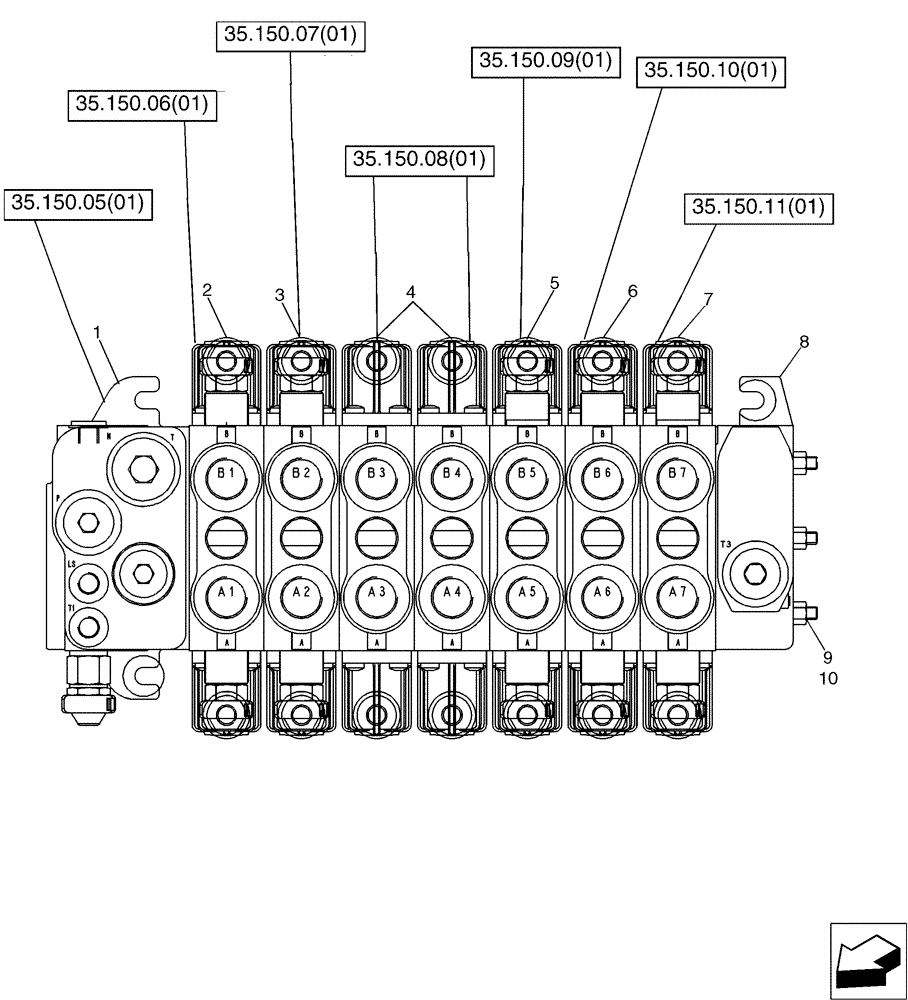

Схема запчастей Case 580SM - (35.726.21[01]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (580SM) (35) - HYDRAULIC SYSTEMS
1
10
2
35.150.06(01)
6
7
35.150.07(01)
35.150.11(01)
4
35.150.10(01)
5
8
35.150.09(01)
35.150.05(01)
35.150.08(01)
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87577346

CONTROL VALVE

Backhoe 7 Spool; Rexroth No. 08 402 663; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 10

1шт.

1

87441495

HYD VALVE SECTION

Inlet; With Orifice Threaded In LS Cavity

1шт.

2

85826339

HYD VALVE SECTION

Swing

1шт.

3

85826337

HYD VALVE SECTION

Boom

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer; Without Flow Sharing to Provide Open Center Performance

2шт.

5

85826338

HYD VALVE SECTION

Dipper

1шт.

6

85826365

HYD VALVE SECTION

Bucket

1шт.

7

85826341

HYD VALVE SECTION

Extendable Dipper

1шт.

8

NSS

NOT SOLD SEPARAT

OUTLET Section

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT Tie

3шт.

10

NSS

NOT SOLD SEPARAT

NUT

3шт.
