Запчасти Case 580SM (35.726.19) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (580SM) (35) - HYDRAULIC SYSTEMS

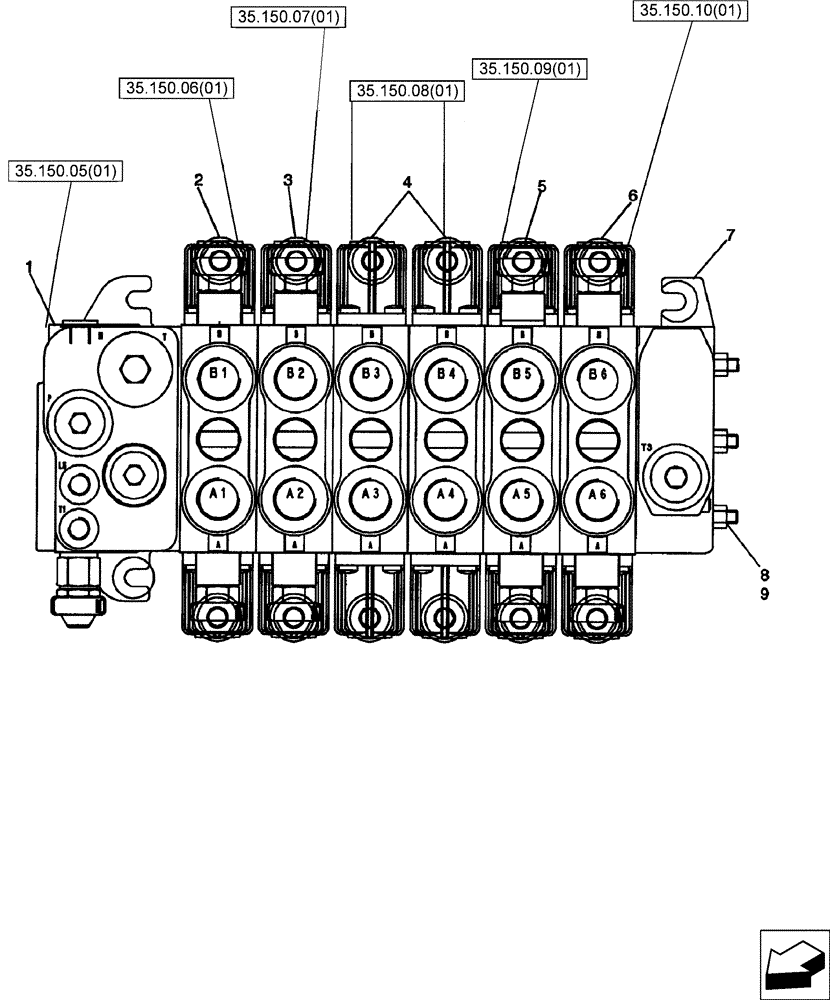

Схема запчастей Case 580SM - (35.726.19) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (580SM) (35) - HYDRAULIC SYSTEMS
3
35.150.09(01)
8
35.150.07(01)
35.150.05(01)
1
6
4
35.150.08(01)
35.150.06(01)
7
2
35.150.10(01)
5
9

Артикул

Название

Примечание

Количество

87577343

CONTROL VALVE

Backhoe 6 Spool; Rexroth No. 08 403 273; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 9

1шт.

1

87441495

HYD VALVE SECTION

Inlet; With Orifice Threaded In LS Cavity

1шт.

2

85826339

HYD VALVE SECTION

Swing

1шт.

3

85826337

HYD VALVE SECTION

Boom

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer; Without Flow Sharing to Provide Open Center Performance

2шт.

5

85826338

HYD VALVE SECTION

Dipper

1шт.

6

85826365

HYD VALVE SECTION

Bucket

1шт.

7

NSS

NOT SOLD SEPARAT

OUTLET

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT Tie

3шт.

9

NSS

NOT SOLD SEPARAT

NUT

3шт.

Выбрано товаров: 10
