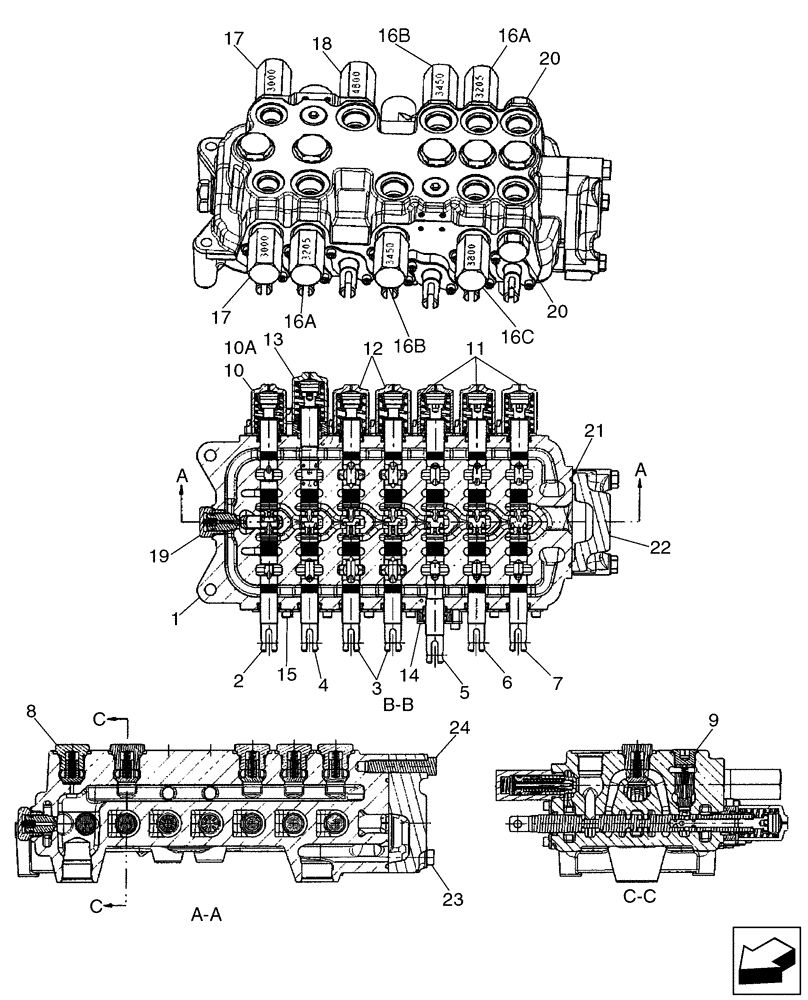

Запчасти Case 580SM (35.726.17[02]) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS) (580SM) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

Models With Extendable Dipper, Without Auxiliary Hydraulics, Without Pilot Controls

1шт.

87555524

HYDRAULIC VALVE

7 Spool, Foot Swing; Incl. Ref 1 - 10, 11 - 24; If Used

1шт.

84305001R

REMAN-HYD VALVE

Reman For 87555524

1шт.

84305001C

CORE-VALVE HYD

Return Number

1шт.

87555519

HYDRAULIC VALVE

7 Spool, Hand Swing; Incl. Ref 1 - 9, 10A, 11 - 24; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Swing

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, Stabilizer Right-Hand and Left-Hand

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL, Boom

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL, Dipper

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL, Bucket

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL, Extendable Dipper

1шт.

8

87426238

VALVE, CHECK

Hex Head; Component Parts Not Serviced Separately; Includes (1) 87455975 O-Ring

5шт.

9

87428486

VALVE, CHECK

Hex Socket Head; Component Parts Not Serviced Separately; Includes (1) 87455974 O-Ring

2шт.

10

87428500

KIT

CAP ASSEMBLY Swing Spool End; 87555524 Foot Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87429151 Centering Spring, (2) 87455541 Screw

1шт.

10a

87426241

KIT

CAP ASSEMBLY Swing Spool End; 87555519 Hand Swing Valve; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw

1шт.

11

87426241

KIT

CAP ASSEMBLY Bucket, Dipper, and Extendahoe Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw

3шт.

12

87428497

KIT

CAP ASSEMBLY Stabilizer Spool Ends; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455533 Spring, (2) 87455541 Screw

2шт.

13

87433029

KIT

CAP ASSEMBLY Boom Spool End; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (1) 87455538 O-Ring, (2) 87455545 Screw

1шт.

14

87440815

PLATE

Seal, Dipper Spool; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

15

87440814

KIT

Seal; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

6шт.

16a

87450978

VALVE PRESSURE RELIE

Circuit; 3205 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

16b

87450979

VALVE PRESSURE RELIE

Circuit; 3450 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

16c

87450980

VALVE PRESSURE RELIE

Circuit; 3800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

1шт.

17

87428490

VALVE PRESSURE RELIE

3000 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

2шт.

18

87566237

VALVE PRESSURE RELIE

4800 psi; Component Parts Not Serviced Separately; Includes 87455549 Seal Kit

1шт.

19

81868381

CHECK VALVE,1-1/16" - 12

Anti-Void Plug; Component Parts Not Serviced Separately; Includes 87455580 Seal Kit

1шт.

20

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Component Parts Not Serviced Separately

2шт.

21

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

Outlet Section

1шт.

22

87433030

OUTLET

Outlet; Component Parts Not Serviced Separately

1шт.

23

87428491

SCREW,Hex

2шт.

24

87428492

SCREW,Hex

1шт.
