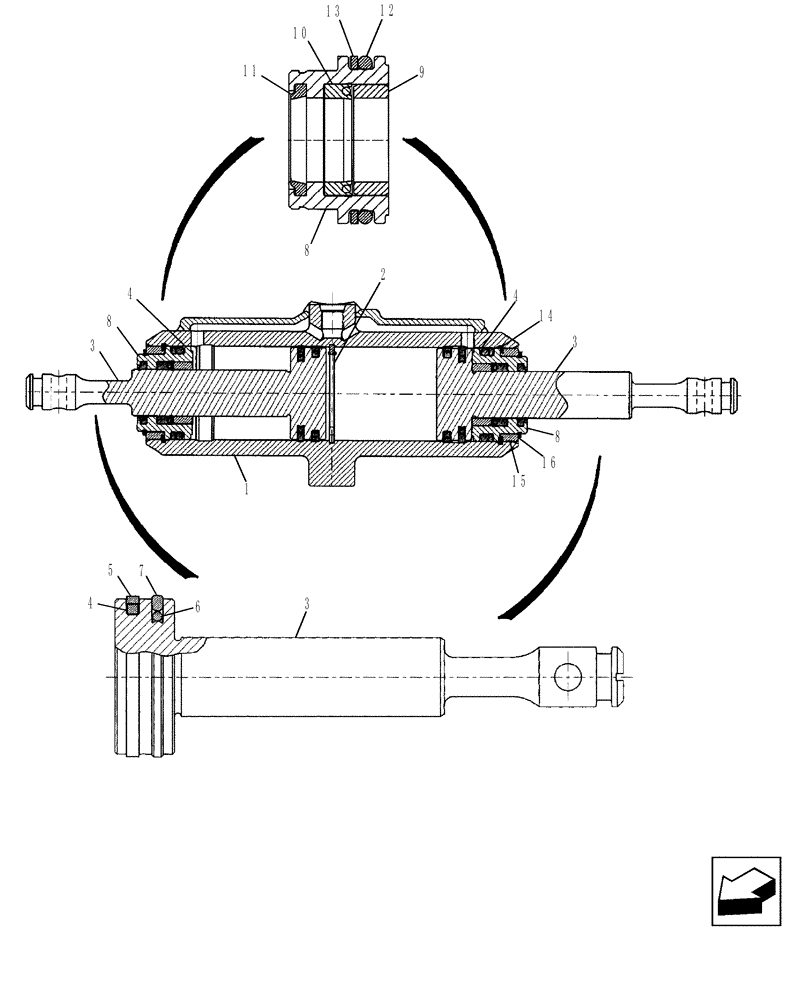

Запчасти Case 580SM (35.726.15) - CYLINDER - COUPLER, BACKHOE BUCKET (35) - HYDRAULIC SYSTEMS

87615847

HYDRAULIC CYLINDER

Backhoe Bucket Coupler; Incl. Ref 1 - 16 and 87619722 Seal Kit

1шт.

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

369263A1

PLUG,6mm OD x 4mm L

Expansion

4шт.

2

800-6138

SNAP RING,M38, Int

1шт.

NSS

NOT SOLD SEPARAT

ROD ASSY Incl. Ref 3 - 7

2шт.

3

399907A2

ROD,19.1mm Dia, 38.1mm Bore x 100.50mm L

Chrome

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

14

102-23150

SNAP RING,#150, 1.591", Int, Spiral

2шт.

15

87615852

SPACER

2шт.

16

102-12125

SNAP RING,#125, 1.188", Ext Spiral

2шт.

87619722

SEAL KIT

Incl. Ref 4 - 16; Also Includes (2) 390317A1 Rings; (1) 445364A1 Service Ring For Cylinder Tube End Coupler Outer Sleeve End

1шт.
