Запчасти Case 580SM (35.726.03[01]) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/O AUX HYDS) (580SM) (35) - HYDRAULIC SYSTEMS

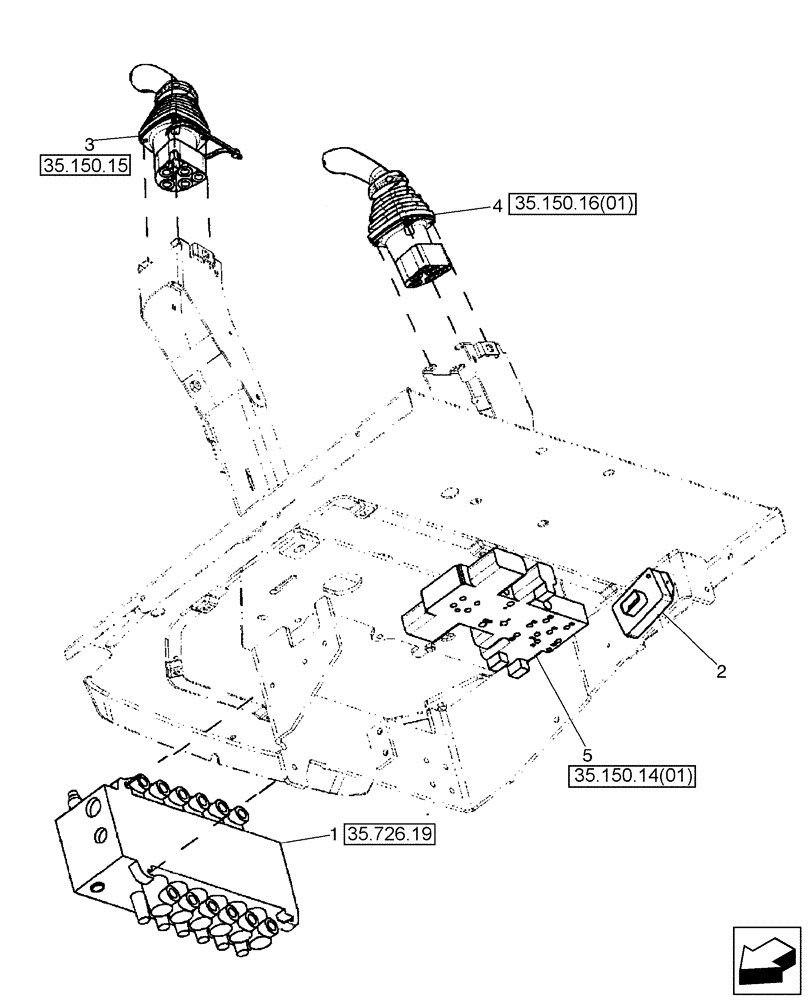

Схема запчастей Case 580SM - (35.726.03[01]) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/O AUX HYDS) (580SM) (35) - HYDRAULIC SYSTEMS
3
35.150.16(01)
35.150.15
35.726.19
4
2
5
35.150.14(01)
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Six Spool Valve Without Extendable Dipper; With Auto-Up; Without Auxiliary Hydraulics, Without Uni-Directional Or Bi-Directional

1шт.

1

87577343

CONTROL VALVE

Backhoe, 6 Spool; Rexroth No. 08 403 273

1шт.

2

87746673

MODULE

Box, Pilot Control Power Supply

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

87685948

JOYSTICK

LH; With Horn Button

1шт.

4

87685956

JOYSTICK

RH

1шт.

5

85827472

HYDRAULIC VALVE

Pressure Reducing, 2 Spool

1шт.

Выбрано товаров: 7
