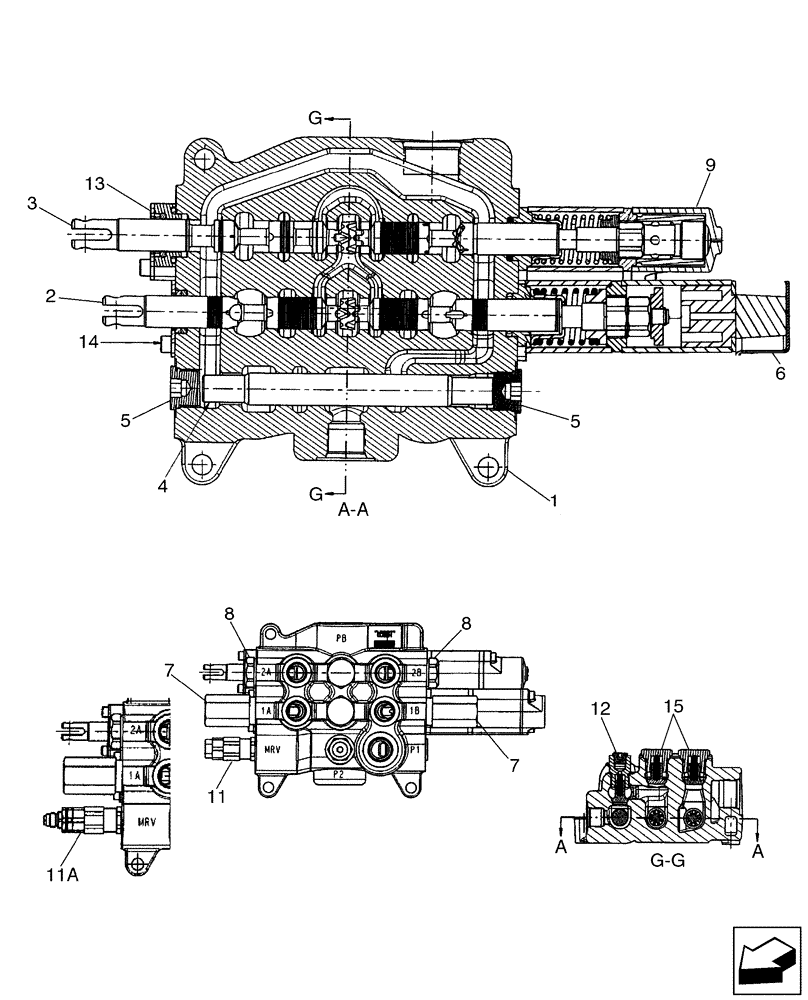

Запчасти Case 580SM (35.724.09) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (580SM) (35) - HYDRAULIC SYSTEMS

87351494

HYDRAULIC VALVE

Two Spool Loader, Used On Models Without Pilot Controls; Incl. Ref 1 - 11, 12 - 15

1шт.

87351498

HYDRAULIC VALVE

Two Spool Loader, Used On Models With Pilot Controls; Incl. Ref 1 - 5, 6A - 9, 11A - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Bucket

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, Lift

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

5

87426233

PLUG,7/8" Male

7/8 - 14 NF, Serviceable Includes (1) 87455974 O-Ring

2шт.

6

84124604

KIT

(Return to Dig) Magnetic, Bucket; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

7

87450978

VALVE PRESSURE RELIE

Some Component Parts Not Serviced Separately; Includes Serviceable 87455549 Seal Kit

2шт.

8

81868381

CHECK VALVE,1-1/16" - 12

Load, Anti-Void; Component Parts Not Serviced Separately; Includes Serviceable 87455580 Seal Kit

2шт.

9

87426227

DETENT

Manual, Lift; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (2) 87310275 Scew, (4) 87310276 Ball Bearing

1шт.

11

87426717

VALVE PRESSURE RELIE

Main, Single Stage; 87351494 Loader Valve, Models Without Pilot Controls; Component Parts Not Serviced Separately; Includes Serviceable 87455551 Seal Kit

1шт.

11a

87426235

VALVE PRESSURE RELIE

Main, Two Stage; 87351498 Loader Valve, Models With Pilot Controls; Component Parts Not Serviced Separately; Includes Serviceable 87455550 Seal Kit

1шт.

12

87426716

VALVE, CHECK

Some Component Parts Not Serviced Separately; Includes Serviceable (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring

1шт.

13

87440815

PLATE

Lift Spool and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

14

87440814

KIT

Bucket Spool and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

1шт.

15

87426238

VALVE, CHECK

Component Parts Not Serviced Separately; Includes Serviceable 87455975 O-Ring

2шт.
