Запчасти Case 580SM (35.724.08[03]) - HYDRAULICS - LOADER CLAM, AT ACCUMULATOR W/ ELECTRICAL (MODELS WITHOUT PILOT CONTROLS) (580SM/SM+) (35) - HYDRAULIC SYSTEMS

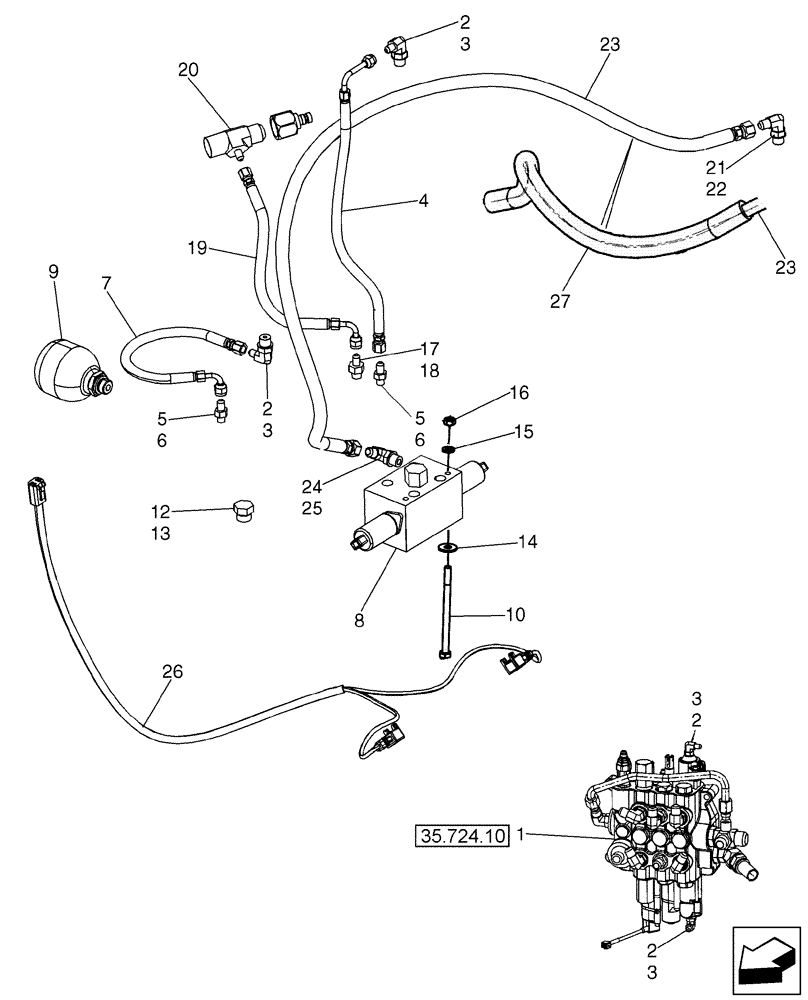

Схема запчастей Case 580SM - (35.724.08[03]) - HYDRAULICS - LOADER CLAM, AT ACCUMULATOR W/ ELECTRICAL (MODELS WITHOUT PILOT CONTROLS) (580SM/SM+) (35) - HYDRAULIC SYSTEMS
2
23
12
2
13
26
22
7
6
15
16
27
17
3
5
3
1
25
21
18
23
6
14
3
19
2
8
24
20
5
3
2
4
9
35.724.10
10

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Loader Control Valve; Three Spool

1шт.

2

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. 3

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

87662930

HYDRAULIC HOSE,6.3mm ID x 534mm L

Loader Control Valve To Proportional Control Valve

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 6

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87662928

HYDRAULIC HOSE,6.3mm ID x 387mm L

Proportional Control Valve

1шт.

8

87566480

VALVE

Proportional Control

1шт.

8a

85827993

SOLENOID VALVE

Proportional Control, (Not Shown)

2шт.

9

87425225

ACCUMULATOR,0.16L

Includes 237-6008 O-Ring

1шт.

10

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

12

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

Incl. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

892-11006

LOCK WASHER,M6

2шт.

16

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

17

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

87662932

HYDRAULIC HOSE,6.3mm ID x 525mm L, SAE 100R16

Proportional Control Valve To Pump

1шт.

20

218-5411

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 7/16"-20 Br

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

87650602

HYDRAULIC HOSE

Proportional Control Valve To Tank

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

87651975

WIRE HARNESS

Jumper

1шт.

27

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

650 mm; Hose Guard

1шт.

Выбрано товаров: 27
