Запчасти Case 580SM (35.724.06) - CONTROLS - LOADER CLAM (35) - HYDRAULIC SYSTEMS

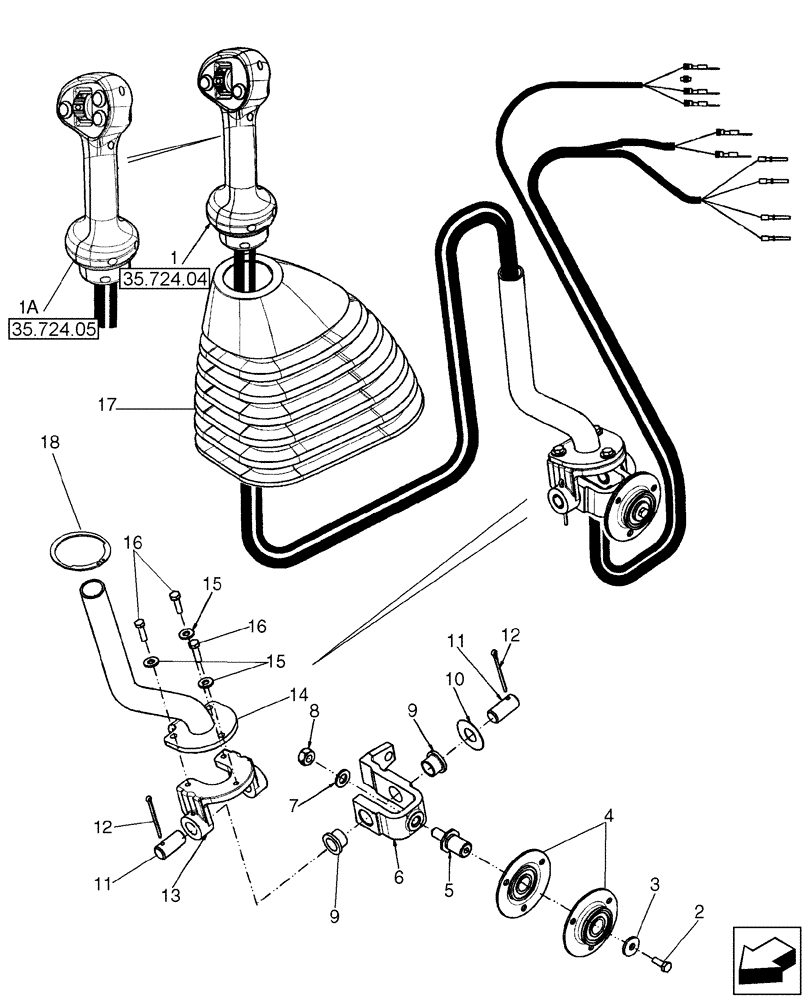

Схема запчастей Case 580SM - (35.724.06) - CONTROLS - LOADER CLAM (35) - HYDRAULIC SYSTEMS
11
10
9
13
12
15
16
7
6
5
14
2
3
15
4
17
1
12
11
18
16
9
1a
8
35.724.05
35.724.04

Артикул

Название

Примечание

Количество

1

87638047

JOYSTICK

Loader Control Lever, Two Button, DeClutch and Differential Lock, Prop Roller With Detent; 3 Spool; See Figure 09-01B

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR

1шт.

258616A1

LOCK

1шт.

298176A1

PLUG

1шт.

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

225327C1

WEDGE,Lock, Black

1шт.

258613A1

LOCK

1шт.

1a

87638044

JOYSTICK

Loader Control Lever, Three Button, DeClutch, Differential Lock and Kick Down, Prop Roller With Detent; 3 Spool; See Figure 09-01C

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR

1шт.

258616A1

LOCK

1шт.

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

225327C1

WEDGE,Lock, Black

1шт.

258613A1

LOCK

1шт.

2

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

3

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

4

112380A1

BEARING ASSY

2шт.

5

176309A1

SHAFT,M10 x 1.5, 48.74mm L

1шт.

6

87586156

LINKAGE YOKE

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

10

495-81184

WASHER,21/32" x 1 1/2" x .030"

1шт.

11

102761A1

PIN,15.91mm OD x 35mm L

2шт.

12

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

13

87681261

BRACKET

1шт.

14

87708015

HANDLE

1шт.

15

495-11028

WASHER,1/4", SAE

3шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

17

87632920

BOOT

1шт.

18

84146318

SNAP RING

1шт.

Выбрано товаров: 32
