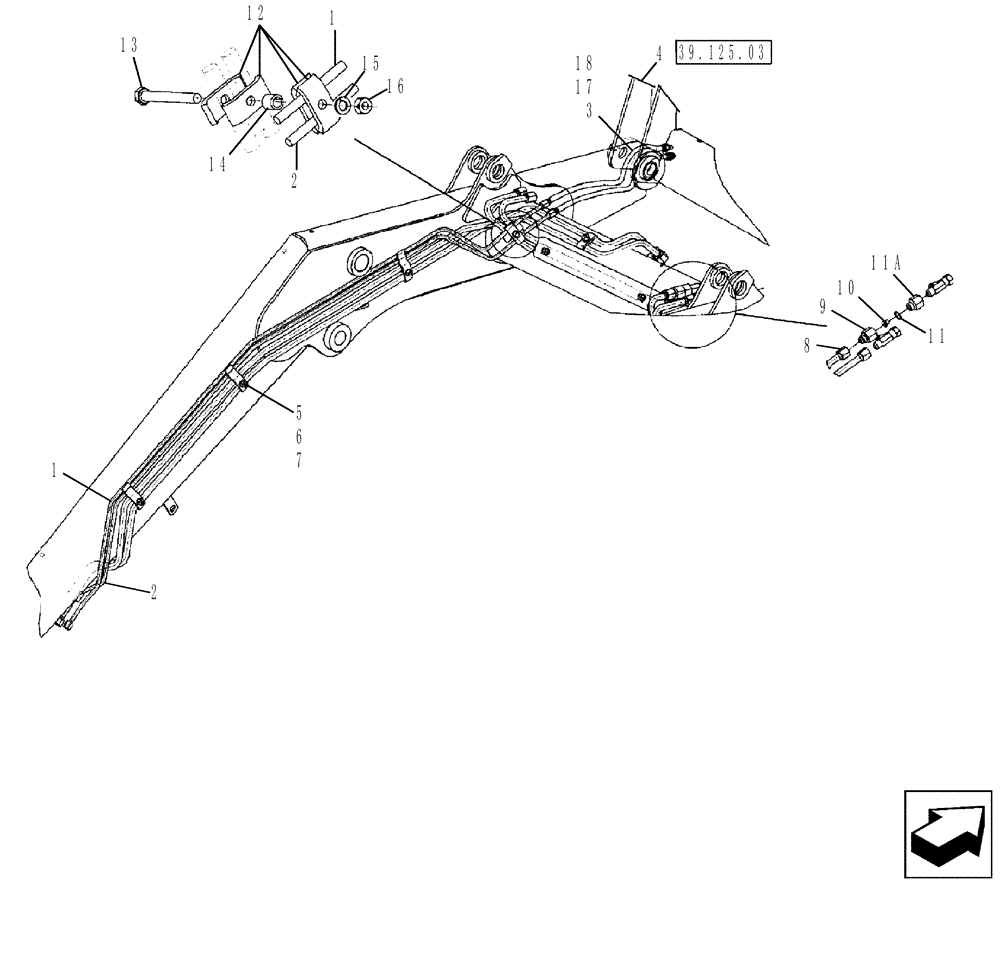

Запчасти Case 580SM (35.701.03[01]) - HYDRAULICS - COUPLER, LOADER TOOL QUICK, AT LOADER LIFT FRAME (580SM) (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

At Loader Lift Frame

1шт.

1

87716490

HYD TUBE

1шт.

2

87716492

HYD TUBE

1шт.

3

300996A3

HYDRAULIC HOSE,1/4" ID x 772mm L

772 mm (30-13/32")

2шт.

4

REF

INSTRUCTION

Coupler, Hydr., Loader Tool Quick Coupler; For Complete Assembly,Order From Machinery Price List; Use Standard Loader Bucket Pins To Mount Coupler

1шт.

5

302820A2

CLAMP

3шт.

6

892-11010

LOCK WASHER,M10

3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

8

87716484

HYD TUBE

1шт.

9

304424A1

HYD CONNECTOR,0.875" - 14 JIC x 0.875" - 14 ORB

1шт.

10

304890A1

RESTRICTOR

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11a

309674A1

HYD CONNECTOR,0.875" - 14 ORB x 0.875" - 14 ORFS

7/8 male x 7/8 female

1шт.

12

D138055

CLAMP

4шт.

13

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

14

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

17

307277A1

PROTECTIVE SLEEVE,36.87mm ID x 850mm L

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.
