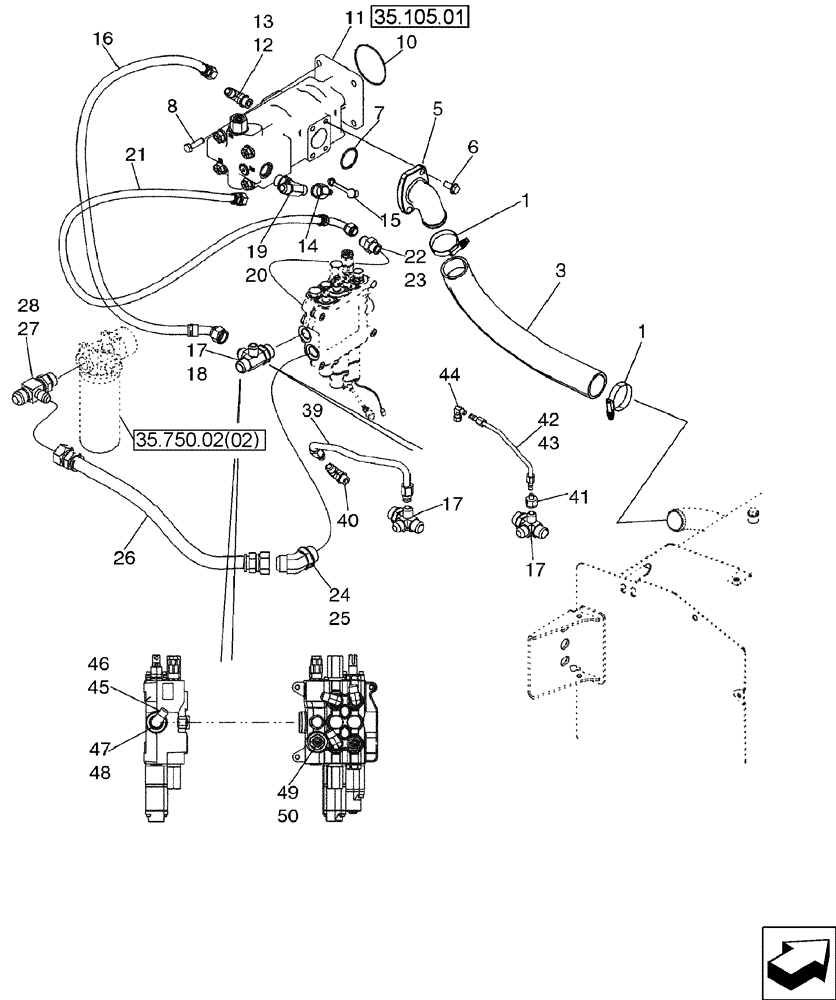

Запчасти Case 580SM (35.700.02) - HYDRAULICS - PUMP, FILTER AND LOADER VALVE (580SM STD. W/ MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

1

259044A1

CLAMP

2шт.

3

87627903

HYDRAULIC HOSE,50.80 mm ID x mm, SAE 30R7

Suction Tube

1шт.

5

87592658

FLANGE

Pump

1шт.

6

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

Models Without Powershift Transmission

4шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Models with Powershift Transmission

4шт.

10

87429982

O-RING

Pump Mounting; Included In Transmission Assembly

1шт.

11

87434673

HYDRAULIC PUMP,20.8 CC

Equipment, Tandem

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Disconnect; Includes (1) 425-1120 Nut

1шт.

15

H434163

DUST CAP

1шт.

16

87437230

HYDRAULIC HOSE,1 1/16" - 12 JIC, 45 Degree, 740mm L

740 mm (29-5/32 in); Large Pump Section to Loader Valve

1шт.

17

87436066

FITTING,1" 5/16 - 12 ORFS x 1" 5/16 - 12 ORB x 1 1/16" - 12 ORB x 7/8" - 14 ORB

4-Way Special; Incl. Ref 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

87452399

HYDRAULIC HOSE,1 1/16" - 12 JIC, 90 Degree, 775mm L

775 mm (30-9/16 in), Small Pump Section

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 25

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

87452400

HYDRAULIC HOSE,1 5/16" - 12 JIC, 635mm L

635 mm (25 in), Loader, Serial Range: Valve-Filter

1шт.

27

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Incl. Ref 28; Models Without Ride Control

1шт.

27

87436066

FITTING,1" 5/16 - 12 ORFS x 1" 5/16 - 12 ORB x 1 1/16" - 12 ORB x 7/8" - 14 ORB

Tee; Incl. 28; Models With Ride Control

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

39

87437655

TUBE,.625" OD

Two Spool Loader Valve; Models Without Pilot Controls

1шт.

39

87437657

TUBE,.625" OD

Three Spool Loader Valve; Models Without Pilot Controls

1шт.

40

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 237-6010 O-Ring

1шт.

41

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

Models with Pilot Controls

1шт.

42

87437980

HYD TUBE

Two Spool Loader Valve; Models With Pilot Controls

1шт.

43

87437982

TUBE,.375" OD

Three Spool Loader Valve; Models With Pilot Controls

1шт.

44

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

45

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 46; Models Without Pilot Controls

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 48; Models with Pilot Controls

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 50

1шт.

50

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
