Запчасти Case 580SM (10.304.01) - OIL PUMP - ENGINE (10) - ENGINE

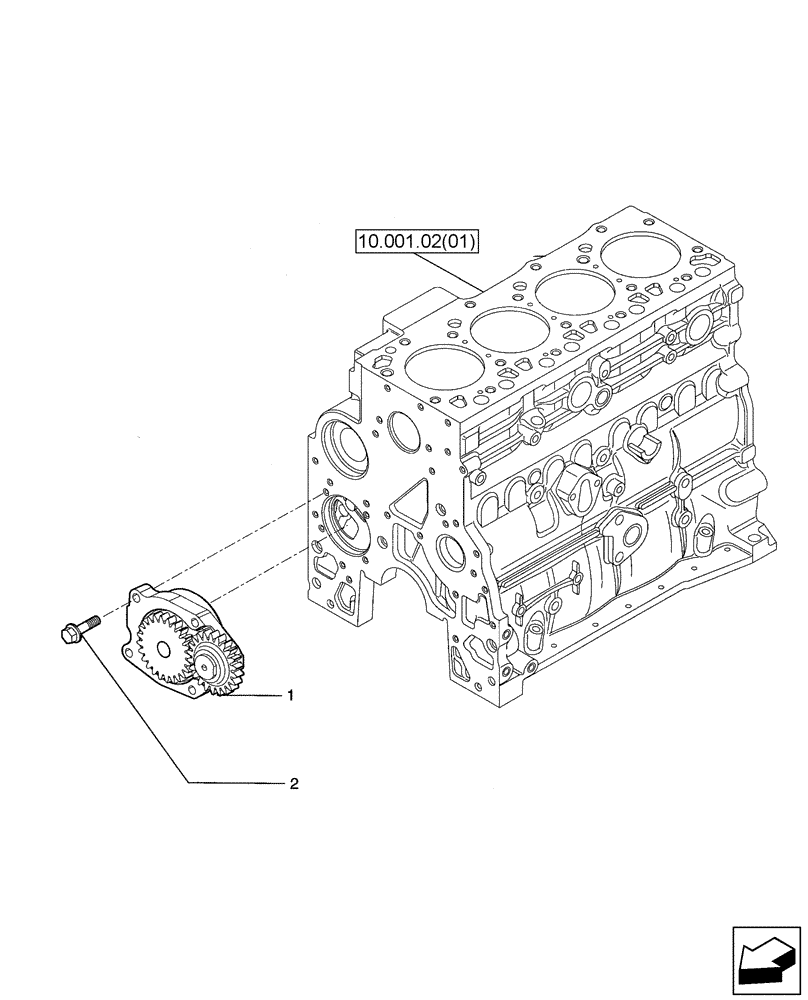

Схема запчастей Case 580SM - (10.304.01) - OIL PUMP - ENGINE (10) - ENGINE
10.001.02(01)
1
2

Артикул

Название

Примечание

Количество

1

4897480

ENGINE OIL PUMP

1шт.

1

4897480R

REMAN-ENG OIL PUMP

580SM TIER 3, 580SM+ TIER 3 (2/08-)

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

1

2853414

ENGINE OIL PUMP

Alternate, Serial Range: Part-4897480

1шт.

1

4897480R

REMAN-ENG OIL PUMP

580SM TIER 3, 580SM+ TIER 3 (2/08-), REMAN FOR NEW P/N 2853414

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.

Выбрано товаров: 7
