Запчасти Case 580SM (10.254.12) - COLD START GRID HEATER (10) - ENGINE

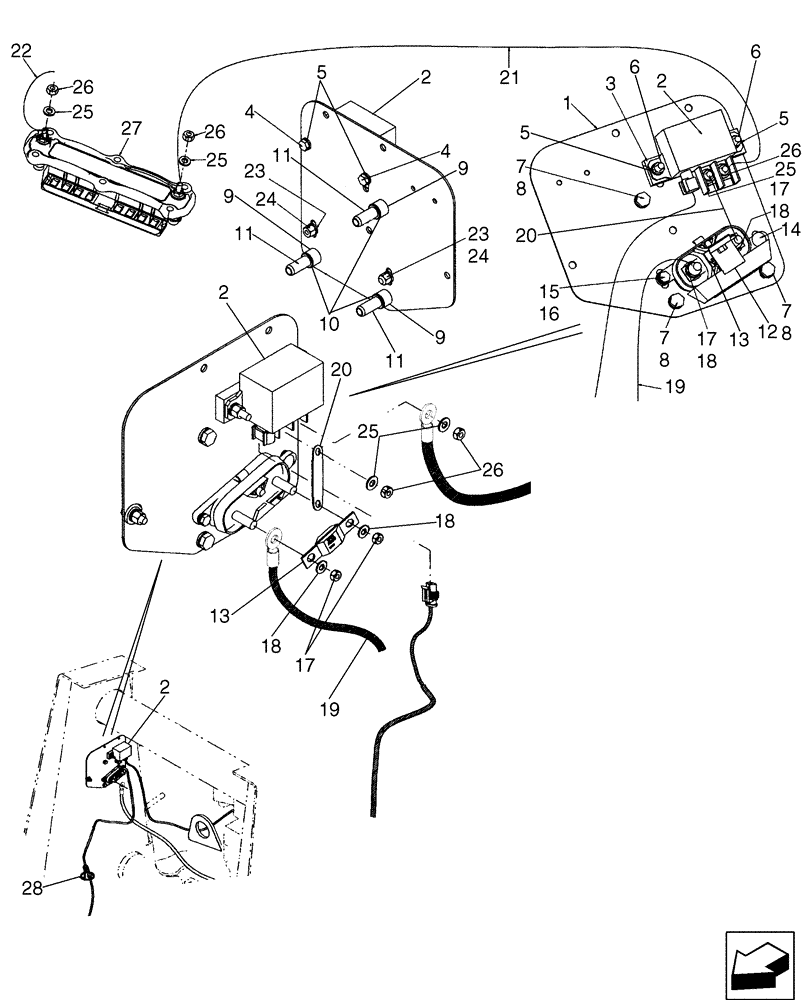

Схема запчастей Case 580SM - (10.254.12) - COLD START GRID HEATER (10) - ENGINE
18
25
5
13
7
8
23
2
9
28
10
14
8
16
27
4
18
17
5
21
17
13
9
24
9
25
3
7
5
19
11
26
23
2
1
11
25
26
11
7
6
12
8
25
4
2
22
26
15
17
20
18
19
18
2
6
20
26
24

Артикул

Название

Примечание

Количество

1

87397601

BRACKET, SUPPORTING,2mm Thk

1шт.

2

86619908

RELAY,12V, 150A

Cold Start

1шт.

3

87414237

PLATE,25mm W x 102mm L x 10mm Thk

Bar, 10 mm Spacer

1шт.

4

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

8

892-11008

LOCK WASHER,8mm ID

3шт.

9

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

3шт.

11

87417383

THREADED INSERT,M8 x 1.25

M8 x 1-1/4

3шт.

12

440038A1

JUNCTION BLOCK

1шт.

13

87410602

FUSE,300A, Blade

1шт.

14

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

87419615

CABLE ASSY.

Starter To Fuse

1шт.

20

87410265

BAR

CABLE Fuse To Relay

1шт.

21

87608352

WIRE HARNESS

Relay To Grid Heater

1шт.

22

87601612

GROUND CABLE

Grid Heater

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

27

2854837

HEATER

Grid

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

Выбрано товаров: 28
