Запчасти Case 580SM (10.254.11) - MUFFLER - EXHAUST SYSTEM (10) - ENGINE

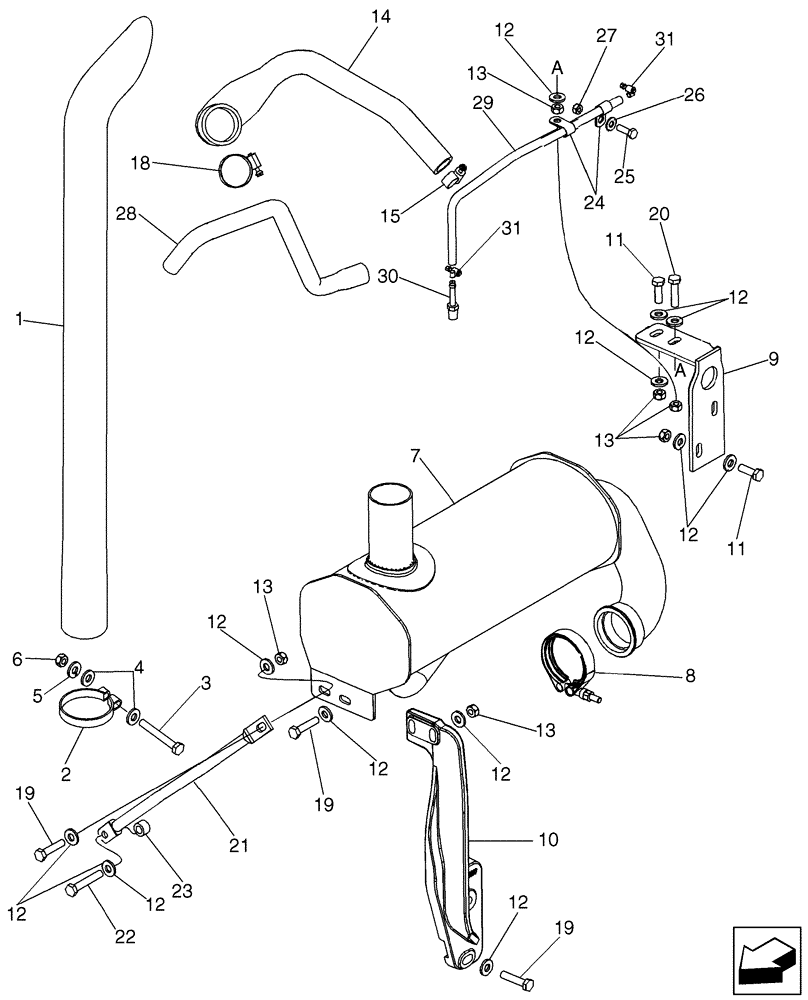

Схема запчастей Case 580SM - (10.254.11) - MUFFLER - EXHAUST SYSTEM (10) - ENGINE
27
20
25
30
12
12
12
2
14
10
11
12
24
5
11
12
9
23
29
4
18
13
1
28
12
12
13
13
12
22
12
19
31
31
8
3
12
19
19
21
26
6
13
15
7

Артикул

Название

Примечание

Количество

1

87309656

EXHAUST SYSTEM PIPE

844 mm (33-1/4 in) Long Stack

1шт.

2

87437804

PIPE CLAMP,94mm ID

Stack

1шт.

3

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87617604

MUFFLER,W/O Spark Arrestor, Aspirated

Aspirated; 580SM/580SM+; If Used

1шт.

7

87617605

MUFFLER

Spark Arrested; 580SM+; If Used

1шт.

8

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

9

87612343

BRACKET

Front Support

1шт.

10

87451167

SUPPORT

Rear Support

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

15шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

14

87704858

HOSE,25.40 mm ID, 50.00 mm ID, SAE 20R4 Class D-3

Aspiration

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

18

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

19

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

20

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

21

87549969

ROD,15.8mm OD

1шт.

22

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

23

87549973

SPACER,11mm ID x 19.05mm OD x 13mm L

Muffler Rod

1шт.

24

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

28

87638737

HOSE,17.00 mm ID, 22.00 mm ID x 110.00 mm, SAE J30R6

1шт.

29

87721299

HOSE,8.30 mm ID x 390 mm, SAE 30R6 Or SAE 20R4 Class D1

Engine to Tee

1шт.

30

87721314

ORIFICE,1.5mm ID

1шт.

31

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

Выбрано товаров: 30
