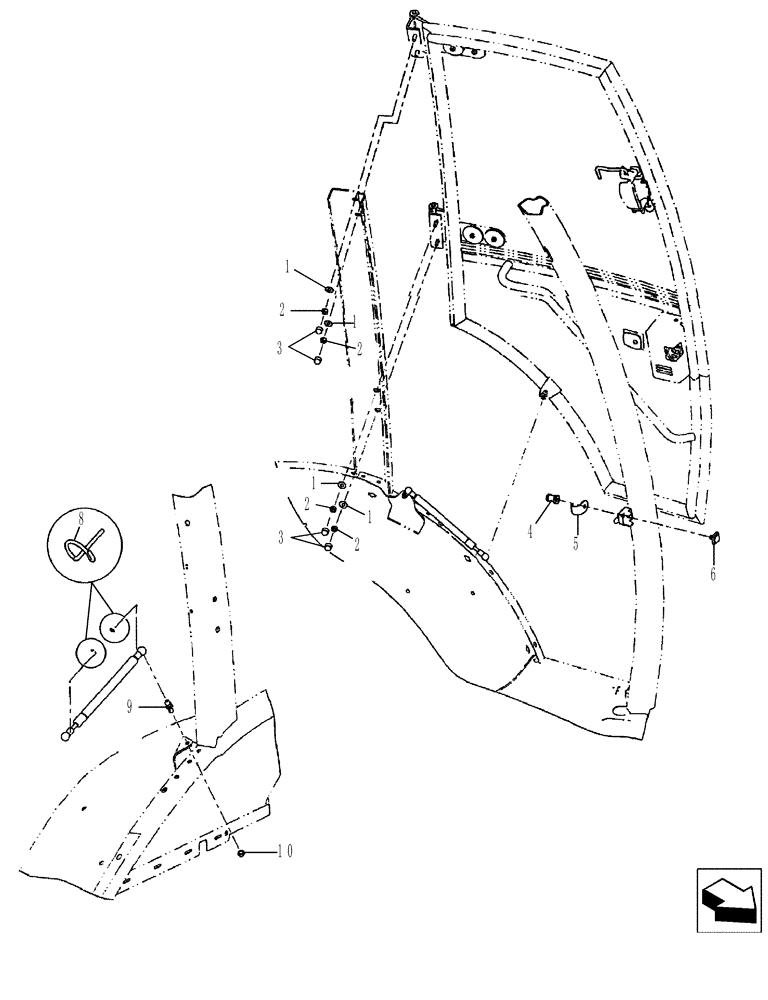

Запчасти Case 580SM (90.154.07) - CAB - DOOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

Left-Hand and Right-Hand Cab Doors; Left-Hand Cab Door Shown

1шт.

1

397064A1

SPECIAL WASHER

3/8 x 7/8 x 1/16 thk

4-8шт.

2

232-1446

NUT,3/8"-16, GC

4-8шт.

3

396841A1

CAP,3/8 Inch x 18.03mm L

4-8шт.

4

87411108

SPECIAL BOLT

Striker

1-2шт.

5

393211A1

GUARD

1-2шт.

6

442842A1

STRIKER

STRIKER

1-2шт.

7

394800A1

GAS STRUT

Spring

1-2шт.

8

3233348R1

CLIP

2-4шт.

9

432431A1

BALL STUD,M8 x 1.25

Ball

1-2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

1-2шт.
