Запчасти Case 580SM (90.150.02) - CAB - FRAME AND COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

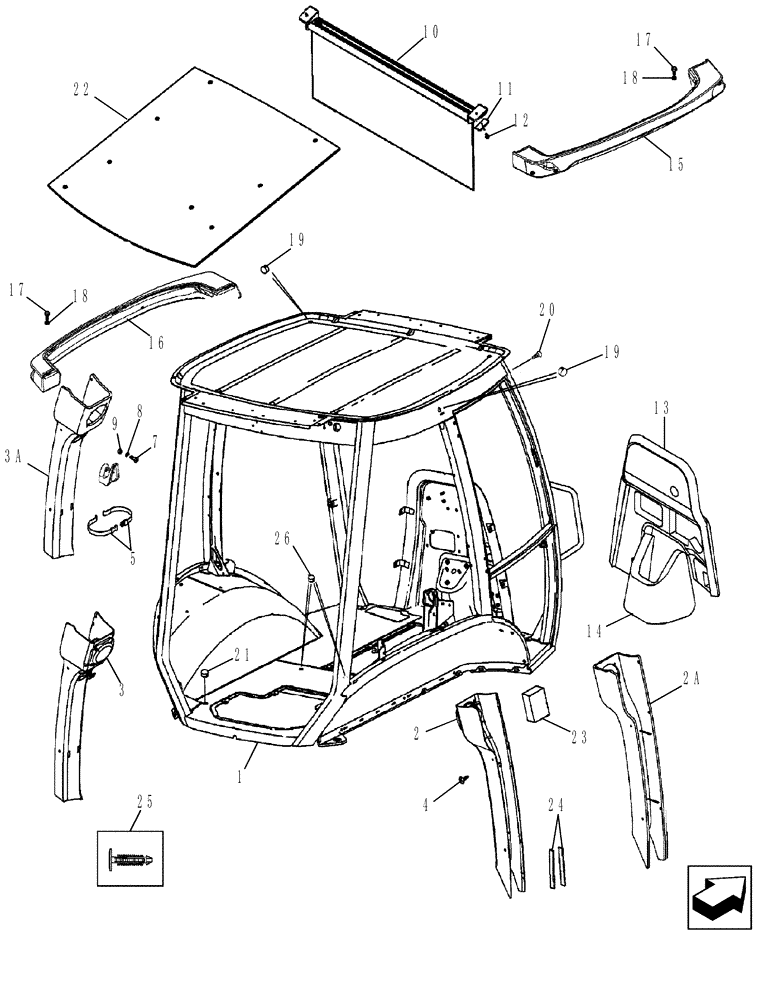

Схема запчастей Case 580SM - (90.150.02) - CAB - FRAME AND COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
19
11
16
2a
15
7
14
18
24
2
13
17
5
9
10
18
4
26
3a
19
3
23
22
12
8
1
21
25
17

Артикул

Название

Примечание

Количество

1

87636561

CAB FRAME

580SM Single Door

1шт.

1

87636563

CAB FRAME

580SM Two Door

1шт.

1

87636566

CAB FRAME

580SM+ Two Door

1шт.

2

87657149

COVER

Plastic; Right-Hand Post; Standard Interior

1шт.

2a

379425A3

COVER

Vinyl; Right-Hand Post; Deluxe Interior

1шт.

3

87657148

COVER

Plastic; Left-Hand Post; Standard Interior

1шт.

3a

379424A2

COVER

Vinyl; Left-Hand Post; Deluxe Interior

1шт.

4

401949A1

FASTENER

10шт.

5

378227A1

STRAP,500mm L

Garment

1шт.

6

114549A1

COAT HOOK

1шт.

7

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

M4 x 16, Stainless Steel

2шт.

8

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

9

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

10

364180A1

VISOR, SUN

1шт.

11

409618A1

PLATE

1/4 in Mounting Hole

2шт.

12

396516A1

SCREW,POINTED

No. 10 x 1; With Washer; Phillips

3шт.

13

87704851

COVER

Firewall, Upper

1шт.

14

87440283

COVER

Firewall, Lower

1шт.

15

360247A3

HOUSING

RH

1шт.

16

360246A3

HOUSING

LH

1шт.

17

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

M6 x 20; Replaces 394863A1

10шт.

18

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

6.4 ID; Nylon

10шт.

19

395388A1

PLUG

3шт.

353-415

PLUG,Dome, 1.500" hole, Nylon

Cab Roof; Models Without Radio Antenna

1шт.

353-410

PLUG,Dome, .875" hole, Nylon

Upper Windshield Frame; Models without Radio Antenna

1шт.

353-407

PLUG,Dome, .687" hole, Nylon

Rear Filter Plate On Models Without Windshield Washer

1шт.

353-425

PLUG,0.437 Hole OD

7/16 IN DIA

2шт.

353-421

PLUG,Dome, .187" hole, Nylon

1шт.

353-405

PLUG,Dome, .562" hole, Nylon

1шт.

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

20

402610A1

FASTENER

Cab Frame; Models Without Exterior Mirrors

8шт.

21

382298A1

PLUG

2шт.

22

368809A1

INSULATOR

1шт.

23

412285A1

STRIP

Foam; Adhesive Back; B-Post

1шт.

24

414939A1

SEAL,200mm L

Adhesive Back; B Post

2шт.

25

411399A1

FASTENER

For 1/4 IN DIA Hole; Christmas Tree Clip

1шт.

26

D140267

PLUG,30.16mm OD

1-3/16 Hole Size; Brake Bleeder

2шт.

Выбрано товаров: 37
